CTEK PRO25SE charger - 12V25A with 6 meters cable and mounting
Portable or mounted power supply and charging
PRO25SE has been designed to be easily carried around or fixed with the supplied wall hanger, so it’s always ready. It’s easy to use with a reliable 12V power supply for code reading, circuit testing and fault finding. The constant supply also ensures that the vehicle’s data isn’t lost and prevents any damage to sensitive electronics or the vehicle’s ECUs. PRO25SE offers fully automatic 8-step charging and maintenance for all lead-acid batteries, including lithium*. It has automatic temperature compensation for ambient temperature in conditions between -20°C and +50°C (-4°F to +122°F). It also features automatic parallel load compensation which makes sure that power supply voltage and amperage are always constant and correct, even if the battery has an additional load placed on it during diagnostic work. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)
FEATURES
Up to 25A of battery support
12V power supply support for code reading, electrical circuit testing and fault finding
Fast, fully automatic 8-step charging
‘RECOND’ step to bring deeply discharged lead-acid batteries back to life

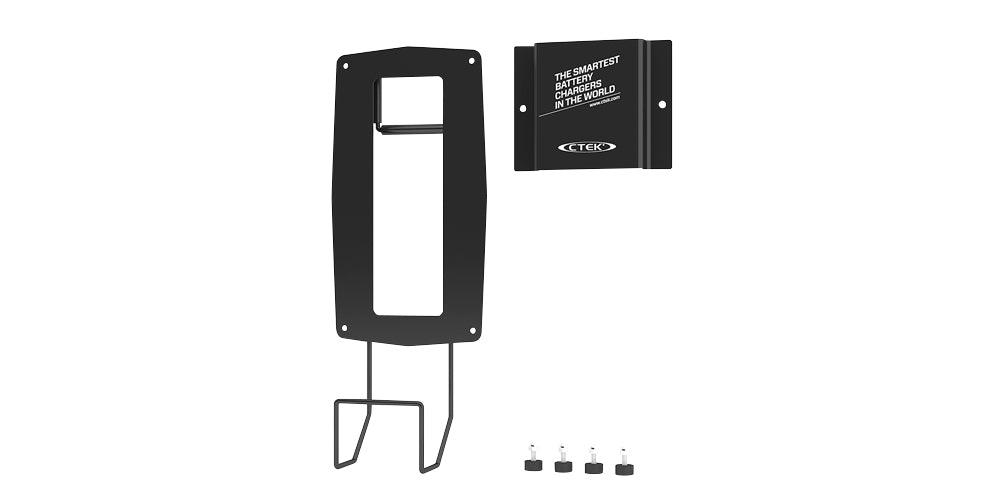

Supplied with heavy duty 6m charging cables and mounting kit
Charger type - 8-step, fully automatic charging cycle
Works with compatible 12V battery types, including Lithium* (LiFePO4)
Low 2V start up voltage for charging
Extremely low ripple
Automatic parallel load compensation
Automatic temperature compensation
Degree of protection - IP44
Accessories - optional BUMPER 300 silicone protector
SPECIFICATIONS
Charging category - AC charging
Input - 220–240 VAC, 50–60 Hz, 2.9 A
Output - 14.4/15.8/13.6 V, 25 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 25 A, LiFePO₄.
Power Supply - Max. 25 A, 13,6 V
Battery chemistry - Lead acid, Lithium-ion
Charging Voltage - Lead acid - 14.4V/15.8V/13.6V Lithium - 13.8V/14.4V/13.3V
Battery types - 12 V:, WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO₄
Battery capacity - 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄.
Parallel Load - Automatic
Back current drain*: Corresponding to less than 1 Ah/month
Battery voltage - 12 V
Ambient operating temperature - -20 ˚C to +50 ˚C
Cooling - Fan
Start voltage - 2.0 V
Ripple**: Less than 4 %
Temperature compensation - External charge voltage temperature compensation sensor
Degree of protection - IP44
Gross weight - (unit in box) 3.9 kg
Dimensions - (L x W x H) 235 x 130 x 65 mm
Net weight - (unit with cables) 3.2 kg
Mains cable length - 2m (AC cable)

CTEK PRO25SE Charger - 12V25A with 6 Meters Cable and Mounting
