The MXS 10 is a fully automatic 8-step charger that delivers 10A to 12V batteries from 20-200Ah and is also suitable for maintenance charging up to 300Ah. It includes battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, a winter program for charging in cold weather and an AGM option which maximises the performance life of most Stop/Start batteries. The MXS 10 also has a temperature sensor for optimised charging and it can even be used as a power supply source for 12V equipment.

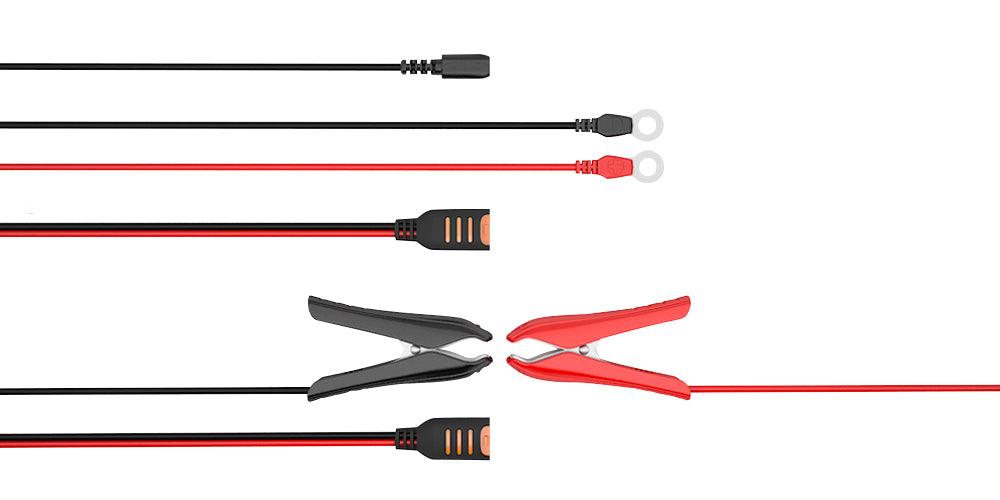

FEATURES Maintains larger batteries up to 300Ah Easy to read LED display Comes with Connect – Eyelet and Connect – Clamp connectors Splash and dust proof (IP65) Safe spark free operation Reverse polarity protected Short circuit proof Fully automatic ‘connect and forget’ 8 step charging Charges batteries from 20-200Ah Temperature sensor, AGM and Recond programs Power supply for 12V equipment
SPECIFICATIONS Charging category - AC charging Input - 220–240 VAC, 50–60 Hz, 1.4 A Output - 14.4/14.7/15.8/13.6 V, 10 A Battery chemistry - Lead acid Battery types - 12 V:, WET, MF, Ca/Ca, AGM, GEL Battery capacity - 20–300 Ah Back current drain*: Corresponding to less than 1 Ah/month Battery voltage - 12 V Ambient operating temperature - -20 ˚C to +50 ˚C Start voltage - 2.0 V Ripple**: Less than 4 % Degree of protection - IP65
