Not in stock, available to order

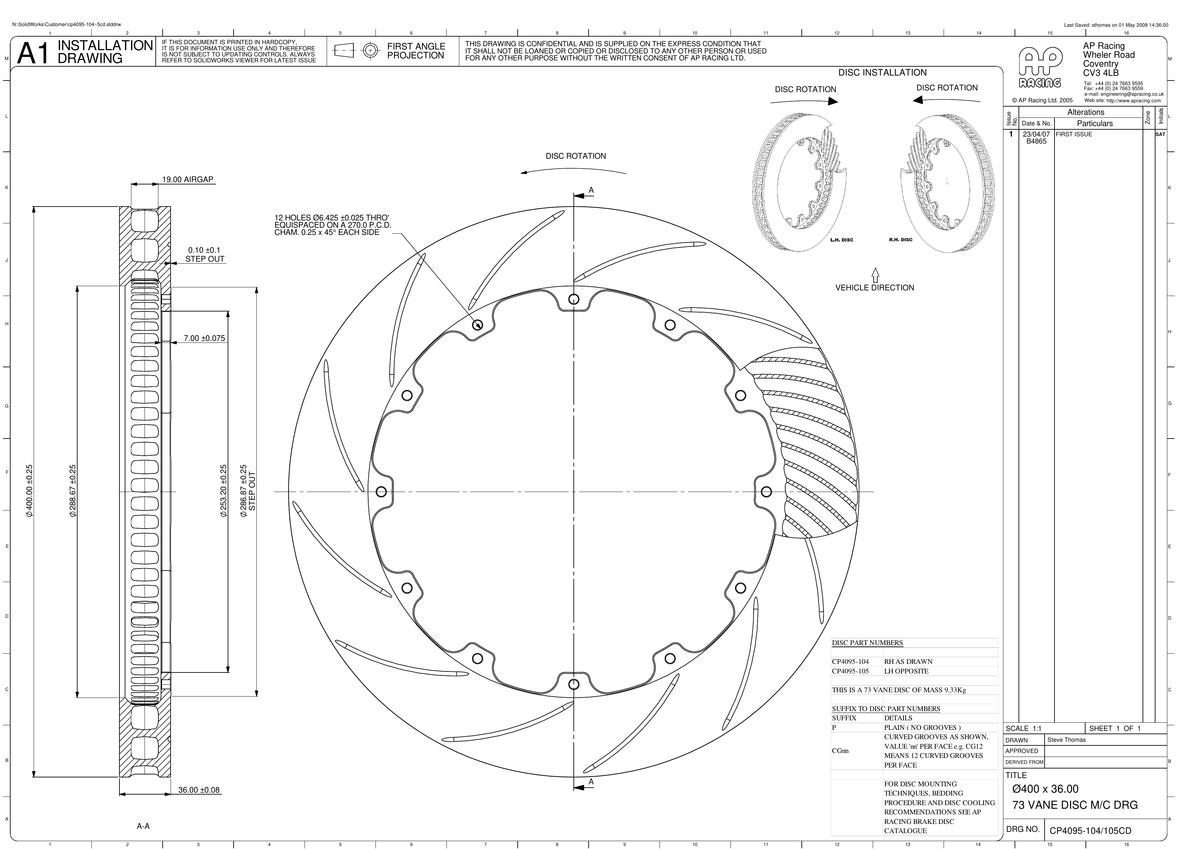

AP Racing Ventilated Brake Disc 400x36mm (CP4095-104/105)
Outside diameter: 400 mm
Thickness: 36 mm
Mounting PCD: 270 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 288.7 mm
Inside flange diameter: 253.2 mm
Mounting flange thickness: 7 mm
Max pad depth: D54
Number of vanes: 73
Air gap: 19 mm
Approx. disc weight: 9.3 kg
Face types available: CG12
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 12 curved grooves (CG12) | D54 | 9.3 kg | CP4095-104CG12 |
| Left | 12 curved grooves (CG12) | D54 | 9.3 kg | CP4095-105CG12 |
Face style notes
CG12: curved grooves, number is grooves per face.
AP Racing part numbers: CP4095-104CG12, CP4095-105CG12.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.
