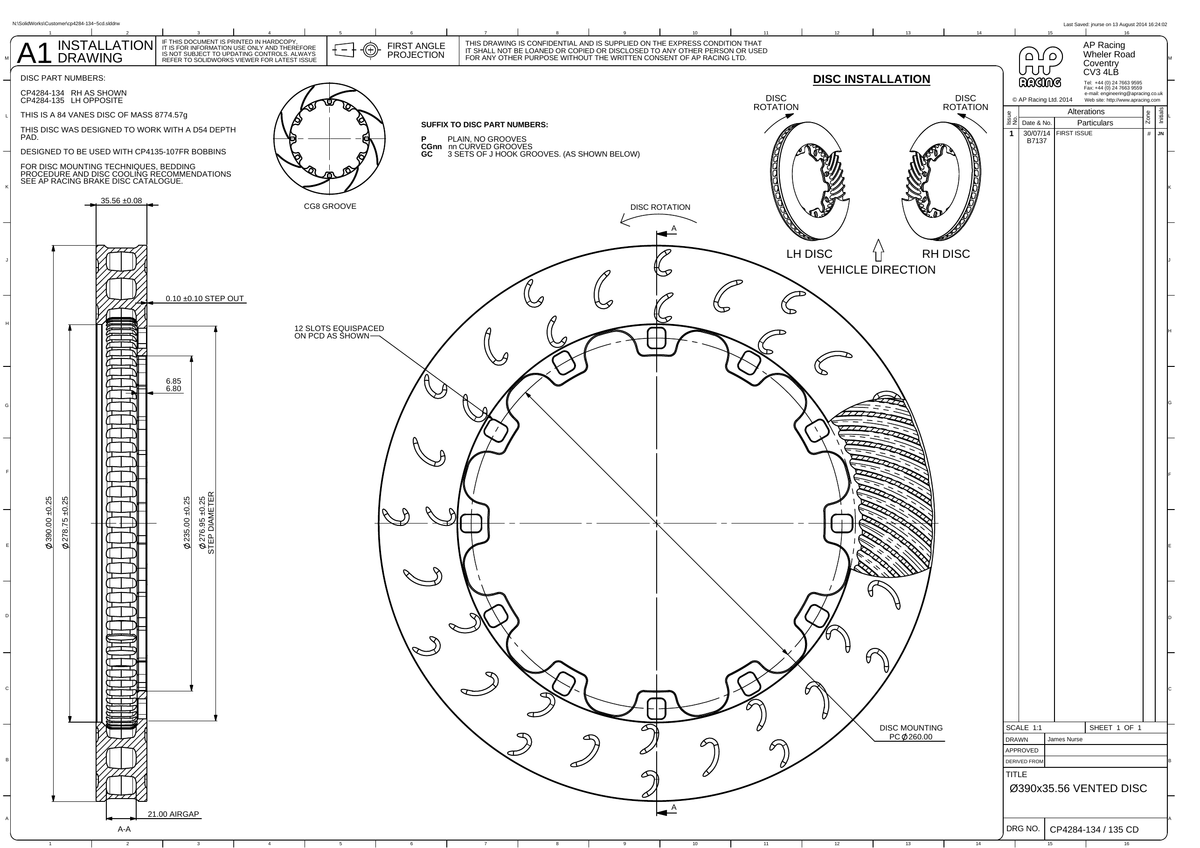

AP Racing Ventilated Brake Disc 390x36mm (CP4284-134/135)
Outside diameter: 390 mm
Thickness: 35.56 mm (nominal 36 mm category)
Mounting PCD: 260 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP4135-107FR
Eye diameter: 278.75 mm
Inside flange diameter: 235 mm
Mounting flange thickness: 6.8 mm
Max pad depth: D54
Number of vanes: 84
Air gap: 21 mm
Approx. disc weight: 8.7 kg
Face types available: CG8/GA
AP comments: Pro 5000 disc
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 8 curved grooves (CG8) | D54 | 8.7 kg | CP4284-134CG8 |
| Right | J-hook groove pattern (GA) | D54 | 8.7 kg | CP4284-134GA |
| Left | 8 curved grooves (CG8) | D54 | 8.7 kg | CP4284-135CG8 |
| Left | J-hook groove pattern (GA) | D54 | 8.7 kg | CP4284-135GA |
Face style notes
CG8: curved grooves, number is grooves per face.
GA: AP Racing J-hook groove pattern.
AP Racing part numbers: CP4284-134CG8, CP4284-134GA, CP4284-135CG8, CP4284-135GA.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
