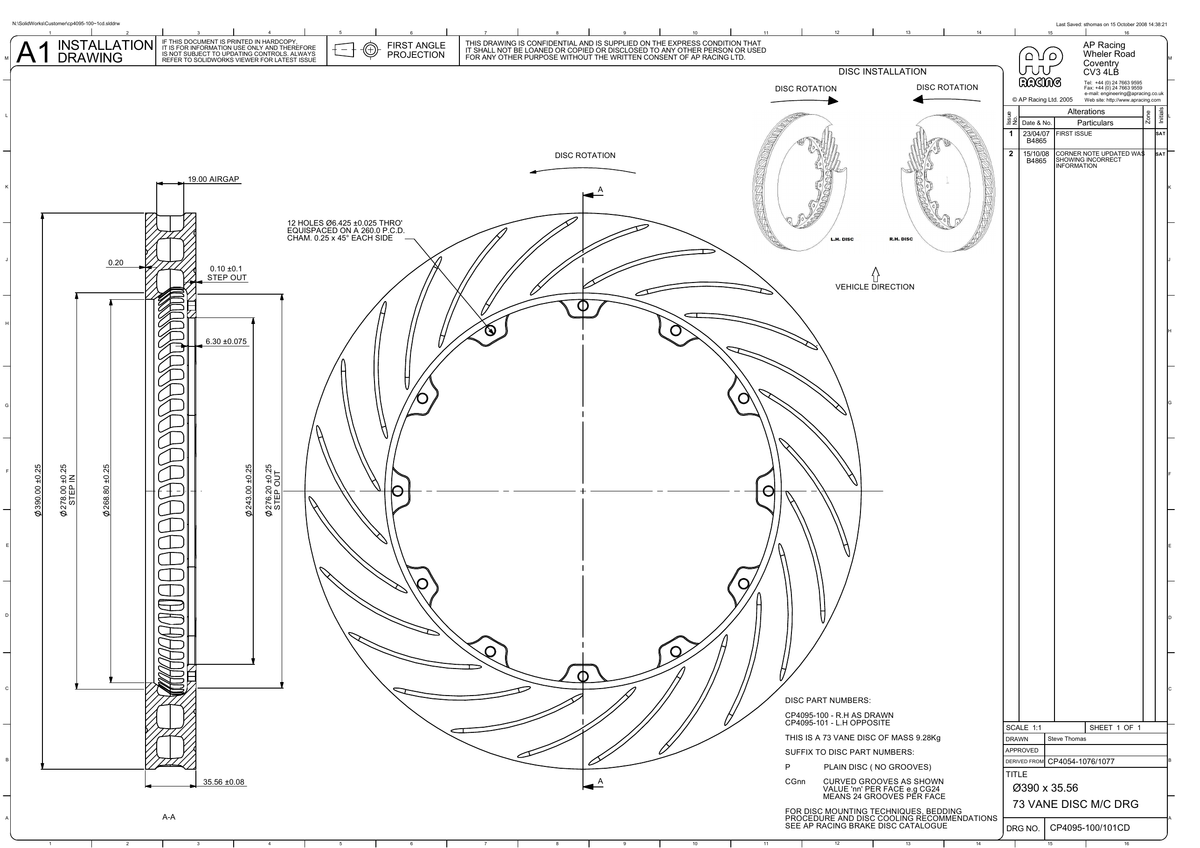

AP Racing Ventilated Brake Disc 390x36mm (CP4095-100/101)
Outside diameter: 390 mm
Thickness: 36 mm
Mounting PCD: 260 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 268.8 mm
Inside flange diameter: 243 mm
Mounting flange thickness: 6.3 mm
Max pad depth: D54
Number of vanes: 54
Air gap: 19 mm
Approx. disc weight: 9.3 kg
Face types available: CG24
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 24 curved grooves (CG24) | D54 | 9.3 kg | CP4095-100CG24 |
| Left | 24 curved grooves (CG24) | D54 | 9.3 kg | CP4095-101CG24 |
Face style notes
CG24: curved grooves, number is grooves per face.
AP Racing part numbers: CP4095-100CG24, CP4095-101CG24.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
