Not in stock, available to order

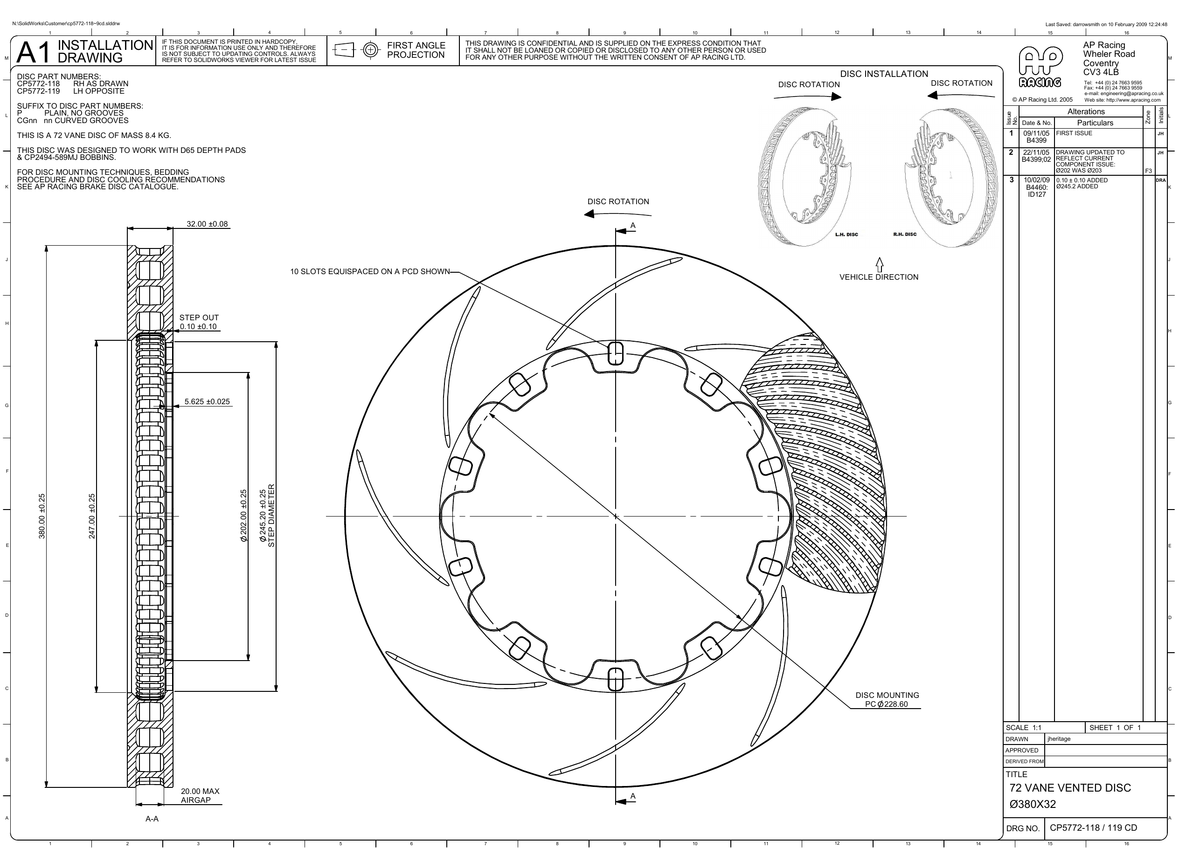

AP Racing Ventilated Brake Disc 380x32mm (CP5772-118/119)
Outside diameter: 380 mm
Thickness: 32 mm
Mounting PCD: 228.6 mm
Mounting holes: 10
Fixing type: Floating
Mounting bobbin: CP2494-589MJ
Eye diameter: 247 mm
Inside flange diameter: 202.2 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D66
Number of vanes: 72
Air gap: 19.5 mm
Approx. disc weight: 8.4 kg
Face types available: CG8
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 8 curved grooves (CG8) | D66 | 8.4 kg | CP5772-118CG8 |
| Left | 8 curved grooves (CG8) | D66 | 8.4 kg | CP5772-119CG8 |
Face style notes
CG8: curved grooves, number is grooves per face.
AP Racing part numbers: CP5772-118CG8, CP5772-119CG8.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.
