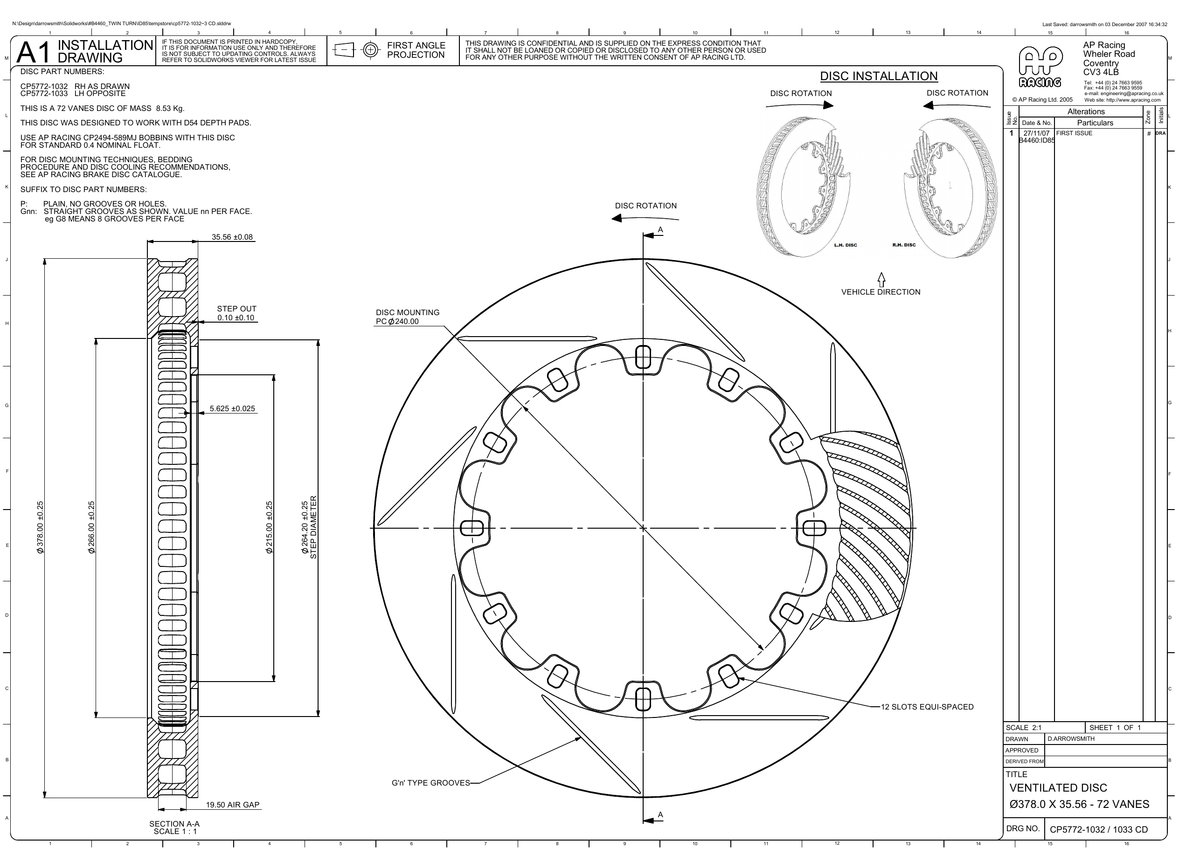

• AP Racing Ventilated Brake Disc 378x36mm (CP5772-1032/1033) technical drawing
  • SKU: CP5772-1032G8

AP Racing Ventilated Brake Disc 378x36mm (CP5772-1032/1033)

747 €
Tax included.
Quantity

Product description

AP Racing Ventilated Brake Disc 378x36mm (CP5772-1032/1033)

  • Outside diameter: 378 mm
  • Thickness: 36 mm
  • Mounting PCD: 240 mm
  • Mounting holes: 12
  • Fixing type: Floating
  • Eye diameter: 266 mm
  • Inside flange diameter: 215 mm
  • Mounting flange thickness: 5.6 mm
  • Max pad depth: D54
  • Number of vanes: 72
  • Air gap: 19.5 mm
  • Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D54 — kg CP5772-1032G8
Left 8 straight grooves (G8) D54 — kg CP5772-1033G8

Face style notes

  • G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP5772-1032G8, CP5772-1033G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
