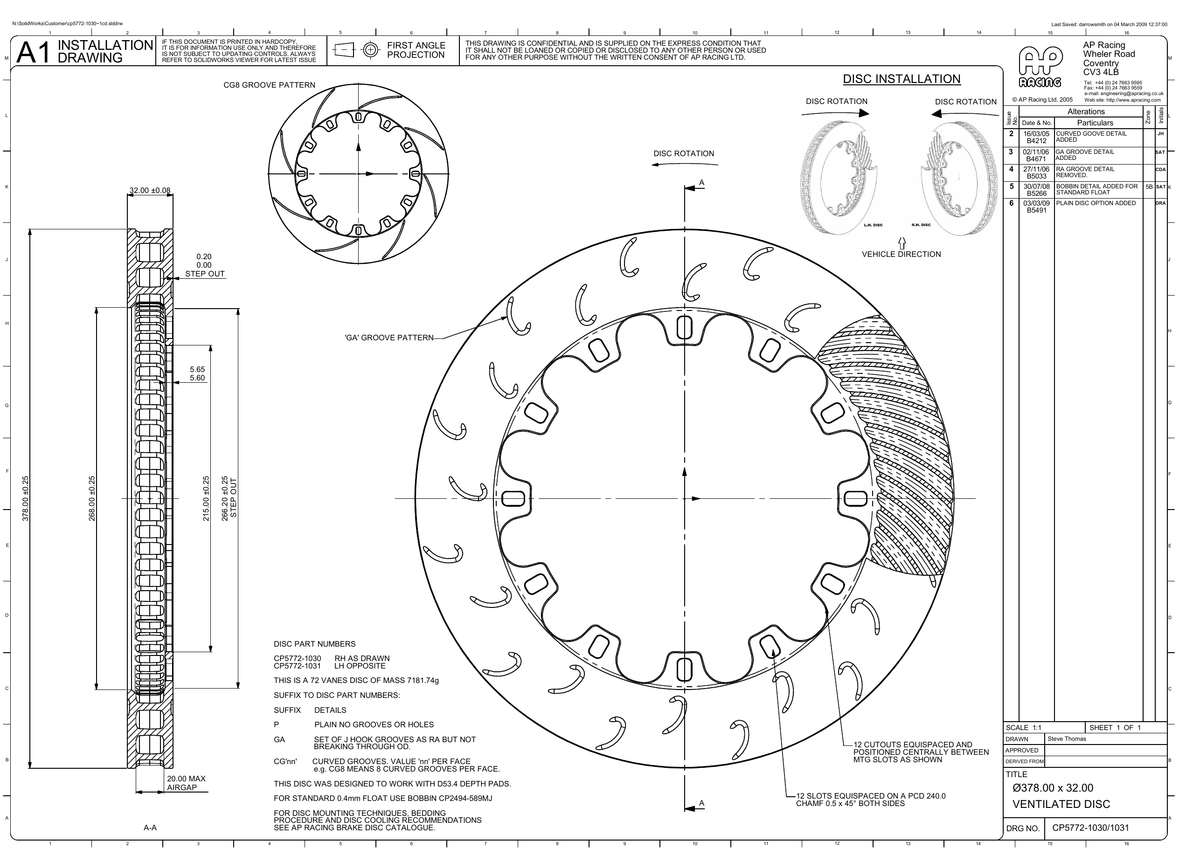

• AP Racing Ventilated Brake Disc 378x32mm (CP5772-1030/1031) technical drawing
  • SKU: CP5772-1030CG8

AP Racing Ventilated Brake Disc 378x32mm (CP5772-1030/1031)

747 €
Tax included.
Quantity

Product description

AP Racing Ventilated Brake Disc 378x32mm (CP5772-1030/1031)

  • Outside diameter: 378 mm
  • Thickness: 32 mm
  • Mounting PCD: 240 mm
  • Mounting holes: 12
  • Fixing type: Floating
  • Mounting bobbin: CP2494-589MJ
  • Eye diameter: 268 mm
  • Inside flange diameter: 215 mm
  • Mounting flange thickness: 5.6 mm
  • Max pad depth: D54
  • Number of vanes: 72
  • Air gap: 19.5 mm
  • Approx. disc weight: 7.16 kg
  • Face types available: CG8/GA/P

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D54 7.16 kg CP5772-1030CG8
Right J-hook groove pattern (GA) D54 7.16 kg CP5772-1030GA
Left 8 curved grooves (CG8) D54 7.16 kg CP5772-1031CG8
Left J-hook groove pattern (GA) D54 7.16 kg CP5772-1031GA

Face style notes

  • CG8: curved grooves, number is grooves per face.
  • GA: AP Racing J-hook groove pattern.

AP Racing part numbers: CP5772-1030CG8, CP5772-1030GA, CP5772-1031CG8, CP5772-1031GA.

Technical drawing: AP Racing customer drawing PDF.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
