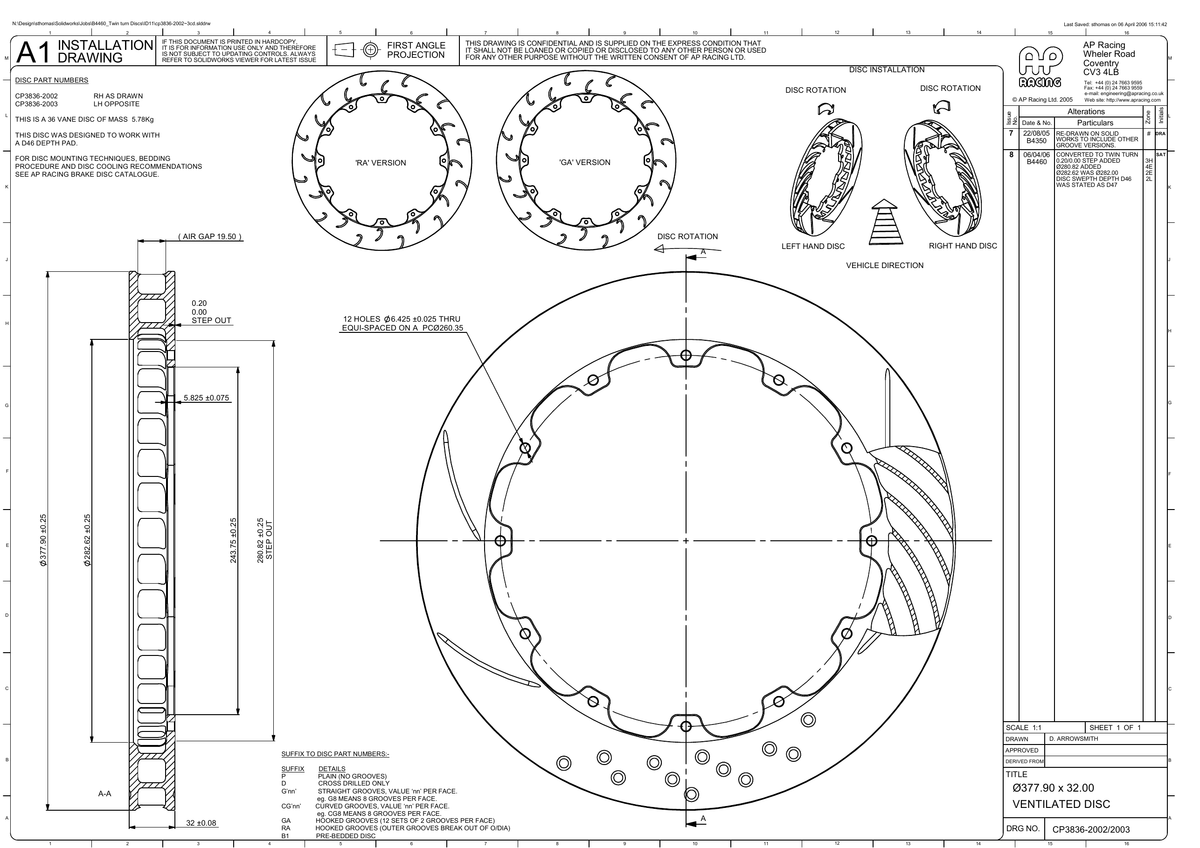

AP Racing Ventilated Brake Disc 378x32mm (CP3836-2002/2003)
Outside diameter: 378 mm
Thickness: 32 mm
Mounting PCD: 260.4 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 282.6 mm
Inside flange diameter: 243.8 mm
Mounting flange thickness: 5.8 mm
Max pad depth: D48
Number of vanes: 36
Air gap: 19.5 mm
Approx. disc weight: 5.8 kg
Face types available: GA
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 8 straight grooves (G8) | D48 | 5.8 kg | CP3836-2002G8 |
| Right | J-hook groove pattern (GA) | D48 | 5.8 kg | CP3836-2002GA |
| Left | 8 straight grooves (G8) | D48 | 5.8 kg | CP3836-2003G8 |
| Left | J-hook groove pattern (GA) | D48 | 5.8 kg | CP3836-2003GA |
Face style notes
G8: straight grooves, number is grooves per face.
GA: AP Racing J-hook groove pattern.
AP Racing part numbers: CP3836-2002G8, CP3836-2002GA, CP3836-2003G8, CP3836-2003GA.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
