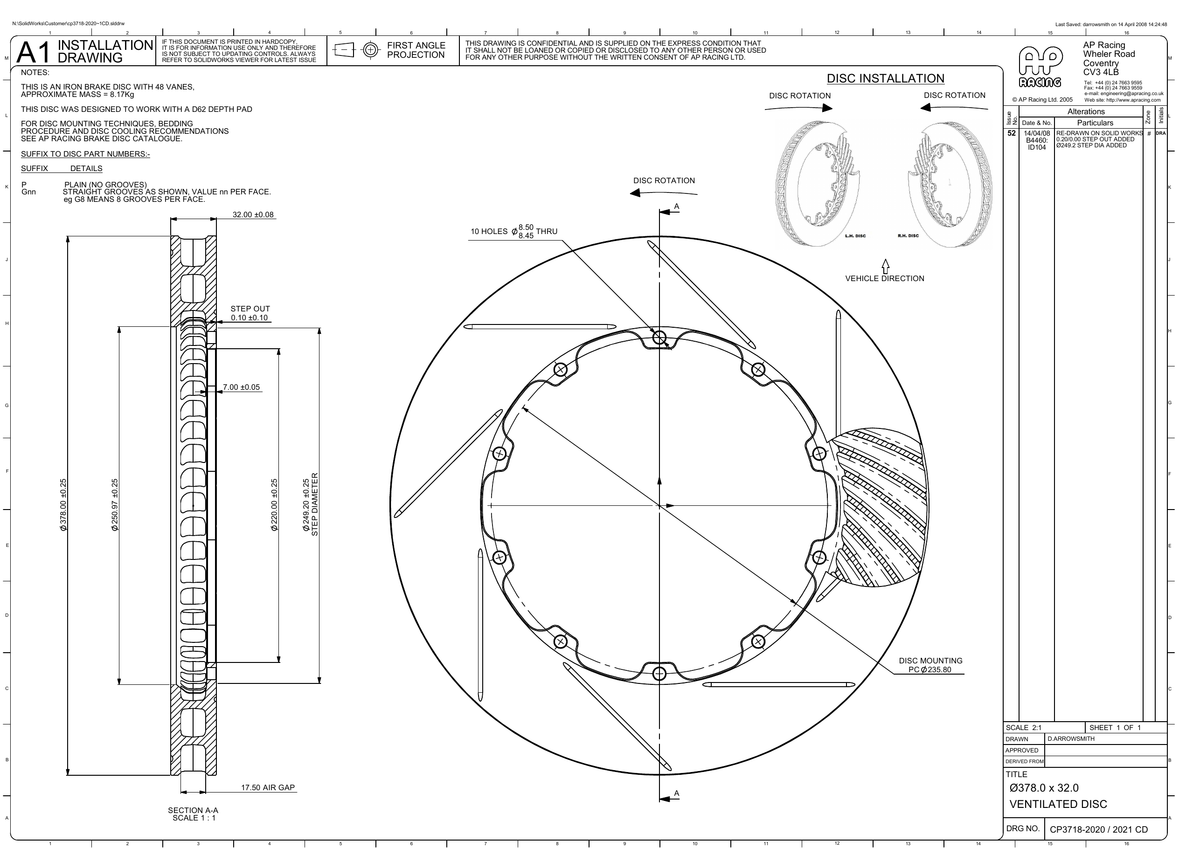

AP Racing Ventilated Brake Disc 378x32mm (CP3718-2020/2021)

AP Racing Ventilated Brake Disc 378x32mm (CP3718-2020/2021)

Outside diameter: 378 mm
Thickness: 32 mm
Mounting PCD: 235.8 mm
Mounting holes: 10
Fixing type: Bolted
Mounting hole diameter: 8.4 mm
Eye diameter: 250 mm
Inside flange diameter: 220 mm
Mounting flange thickness: 7 mm
Max pad depth: D64
Number of vanes: 48
Air gap: 17.5 mm
Face types available: G8

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3718-2020G8, CP3718-2021G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
