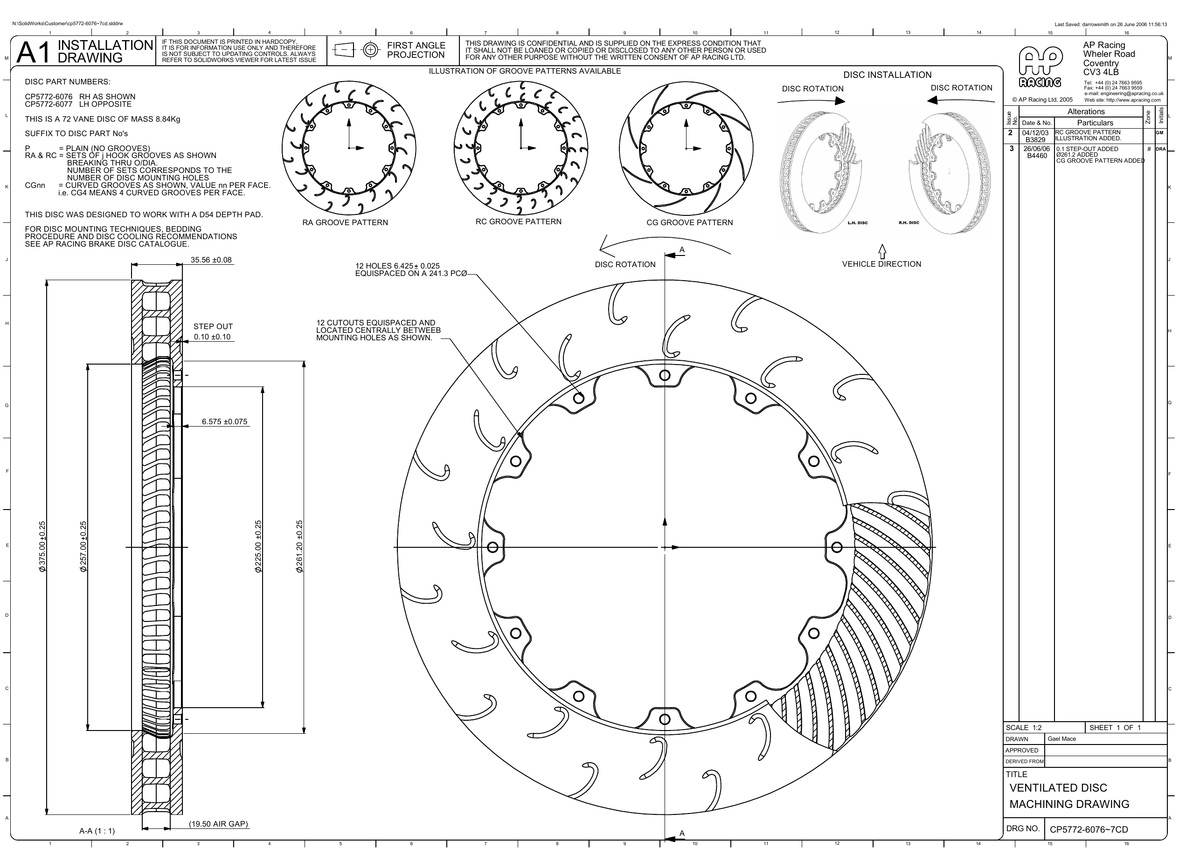

AP Racing Ventilated Brake Disc 375x36mm (CP5772-6076/6077)

AP Racing Ventilated Brake Disc 375x36mm (CP5772-6076/6077)

Outside diameter: 375 mm
Thickness: 36 mm
Mounting PCD: 241.3 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 257 mm
Inside flange diameter: 225 mm
Mounting flange thickness: 6.6 mm
Max pad depth: D54
Number of vanes: 72
Air gap: 19.5 mm
Approx. disc weight: 8.72 kg
Face types available: CG8/P/RA

Select the correct side and face style from the available options.

Face style notes

P: plain, no grooves or holes.

AP Racing part numbers: CP5772-6076P, CP5772-6077P, CP5772-6076RA, CP5772-6077RA.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
