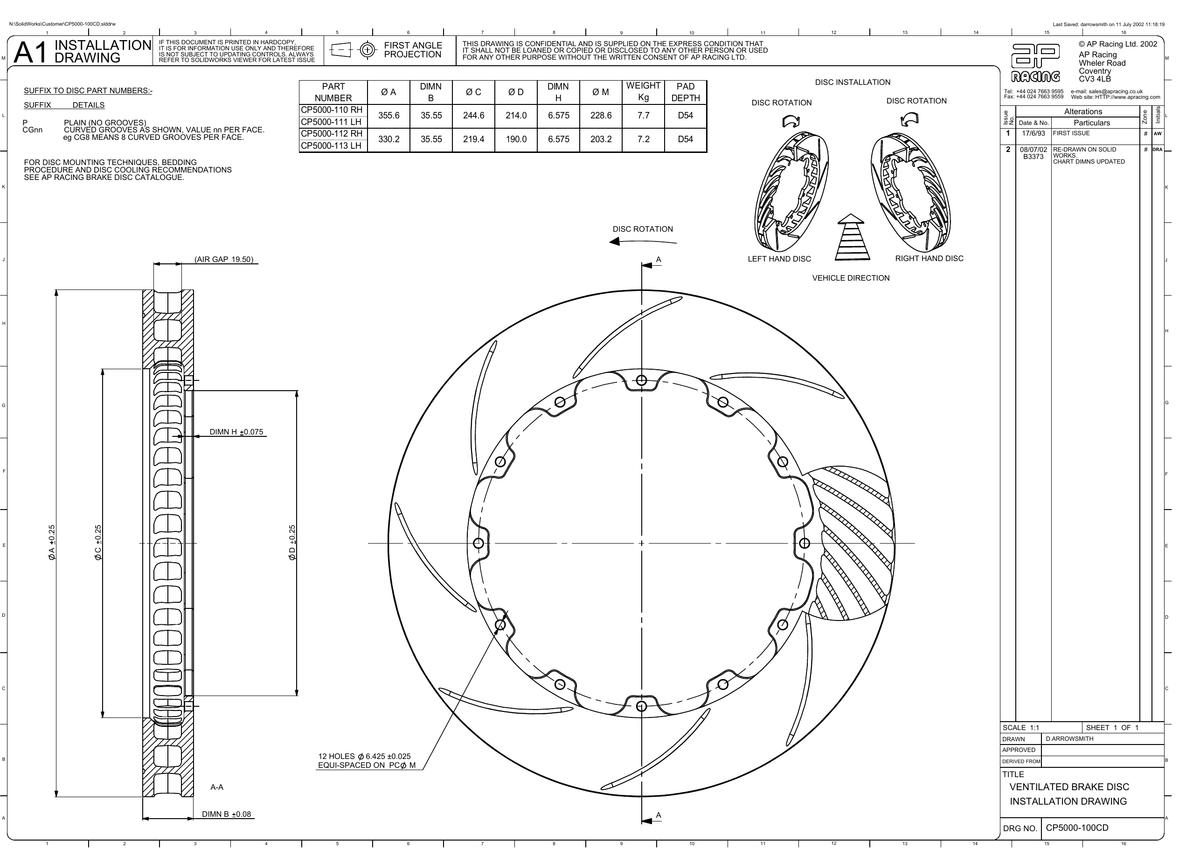

• AP Racing Ventilated Brake Disc 356x36mm (CP5000-110/111) technical drawing
  • SKU: CP5000-110CG8

AP Racing Ventilated Brake Disc 356x36mm (CP5000-110/111)

611 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 356x36mm (CP5000-110/111)

Outside diameter: 356 mm
Thickness: 36 mm
Mounting PCD: 228.6 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 251.6 mm
Inside flange diameter: 202.6 mm
Mounting flange thickness: 6.3 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 19.5 mm
Face types available: CG8
AP comments: Pro 5000 disc

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D51 — kg CP5000-110CG8
Left 8 curved grooves (CG8) D51 — kg CP5000-111CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP5000-110CG8, CP5000-111CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.

View full details
