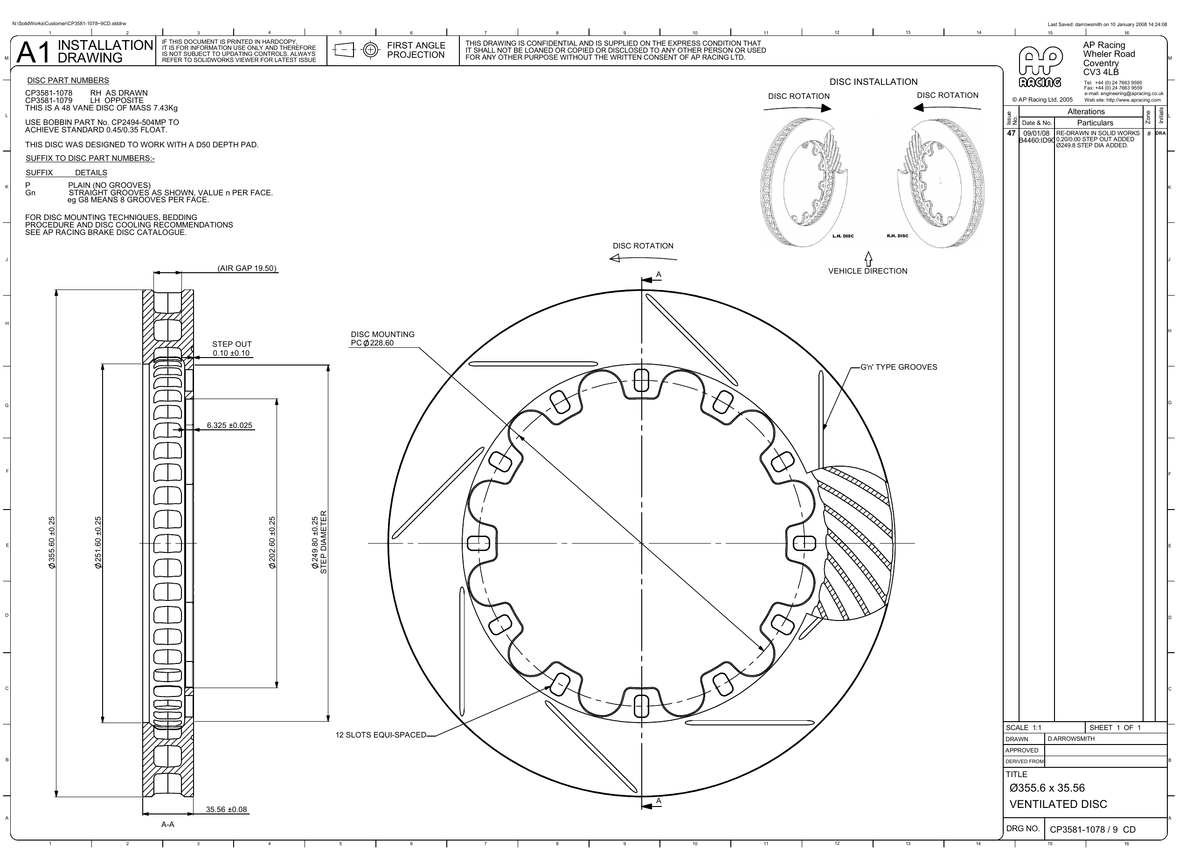

• AP Racing Ventilated Brake Disc 356x36mm (CP3581-1078/1079) technical drawing
  • SKU: CP3581-1078G8

AP Racing Ventilated Brake Disc 356x36mm (CP3581-1078/1079)

665 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 356x36mm (CP3581-1078/1079)

Outside diameter: 356 mm
Thickness: 36 mm
Mounting PCD: 228.6 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP2494-504MP
Eye diameter: 251.6 mm
Inside flange diameter: 202.6 mm
Mounting flange thickness: 6.3 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 19.5 mm
Approx. disc weight: 8 kg
Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D51 8 kg CP3581-1078G8
Left 8 straight grooves (G8) D51 8 kg CP3581-1079G8

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3581-1078G8, CP3581-1079G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.

View full details
AP Racing Ventilated Brake Disc 356x36mm (CP3581-1078/1079) technical drawing

AP Racing Ventilated Brake Disc 356x36mm (CP3581-1078/1079)
