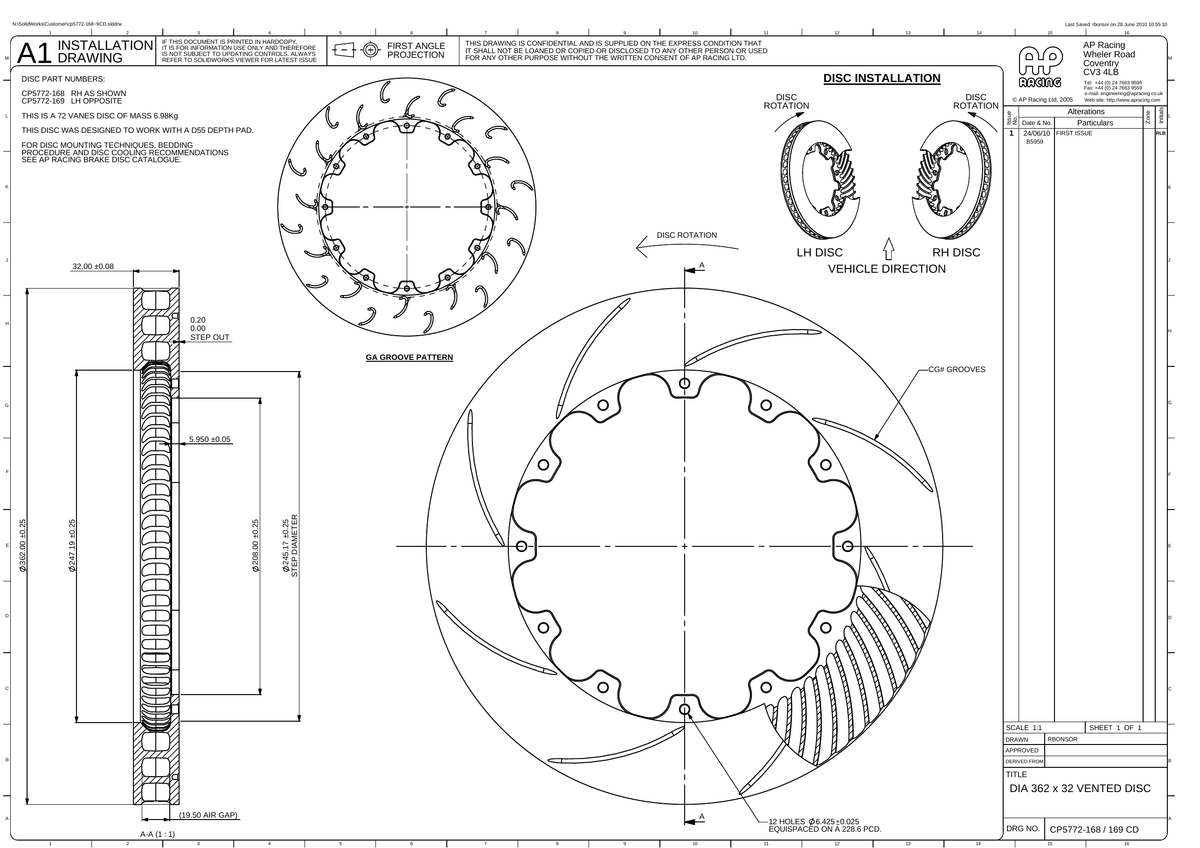

• AP Racing Ventilated Brake Disc 362x32mm (CP5772-168/169) technical drawing
  • SKU: CP5772-168GA

AP Racing Ventilated Brake Disc 362x32mm (CP5772-168/169)

724 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 362x32mm (CP5772-168/169)

Outside diameter: 362 mm
Thickness: 32 mm
Mounting PCD: 228.6 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 247.2 mm
Inside flange diameter: 208 mm
Mounting flange thickness: 5.95 mm
Max pad depth: D55
Number of vanes: 72
Air gap: 19.5 mm
Approx. disc weight: 6.99 kg
Face types available: GA

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right J-hook groove pattern (GA) D55 6.99 kg CP5772-168GA
Left J-hook groove pattern (GA) D55 6.99 kg CP5772-169GA

Face style notes

GA: AP Racing J-hook groove pattern.

AP Racing part numbers: CP5772-168GA, CP5772-169GA.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.

View full details
