AP Racing Ventilated Brake Disc 362x32mm (CP4542-142/143)
449 €
/ per
Tax included.
Not in stock, available to order
Product description

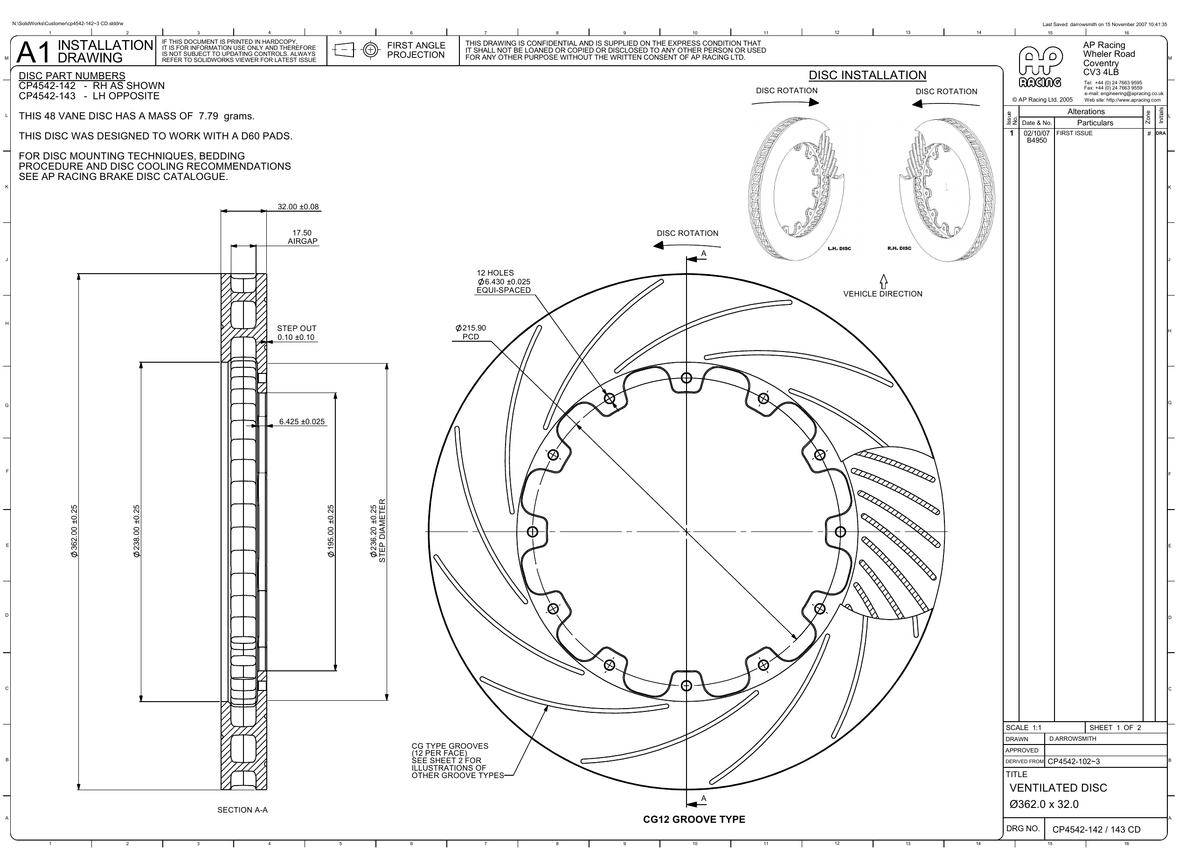

AP Racing Ventilated Brake Disc 362x32mm (CP4542-142/143)
Outside diameter: 362 mm
Thickness: 32 mm
Mounting PCD: 215.9 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.43 mm
Eye diameter: 238 mm
Inside flange diameter: 195 mm
Mounting flange thickness: 6.42 mm
Max pad depth: D61
Number of vanes: 48
Air gap: 17.5 mm
Approx. disc weight: 8.4 kg

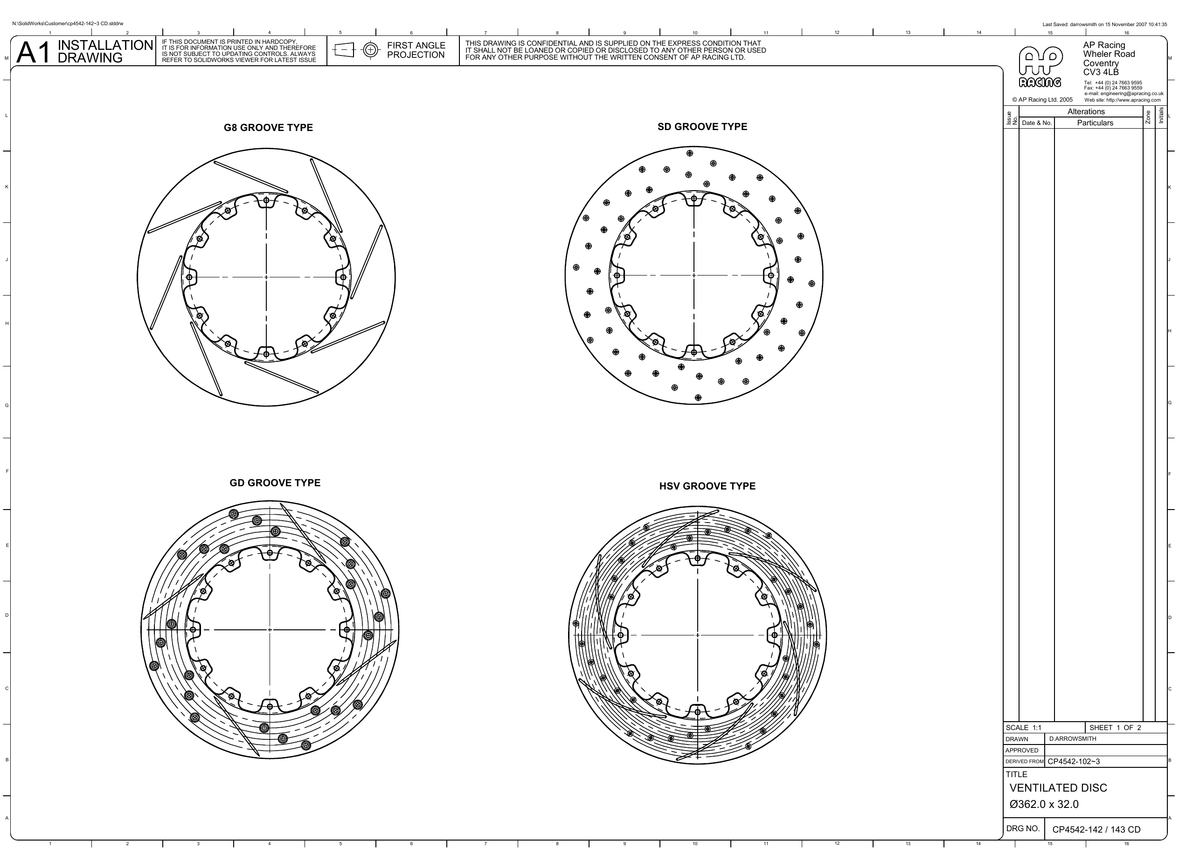

Face types available: G8, CG12, SD
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
8 straight grooves (G8)
D61
8.4 kg
CP4542-142G8
Right
12 curved grooves (CG12)
D61
8.4 kg
CP4542-142CG12
Left
8 straight grooves (G8)
D61
8.4 kg
CP4542-143G8
Left
12 curved grooves (CG12)
D61
8.4 kg
CP4542-143CG12
Face style notes
G8: straight grooves, number is grooves per face.
CG12: curved grooves, number is grooves per face.
AP Racing part numbers: CP4542-142G8, CP4542-142CG12, CP4542-143G8, CP4542-143CG12.
Additional SD replacement options: CP4542-142SD (right) and CP4542-143SD (left). The supplied component rows specify 362 x 32 mm, 12 mounting positions on a 215.9 mm pitch circle and D61 pad depth. Select the complete part number and confirm the existing fixing arrangement. Supplied as one disc per ordered unit; mounting bells and fixing hardware are separate. Packed weight for the SD options is unconfirmed.
