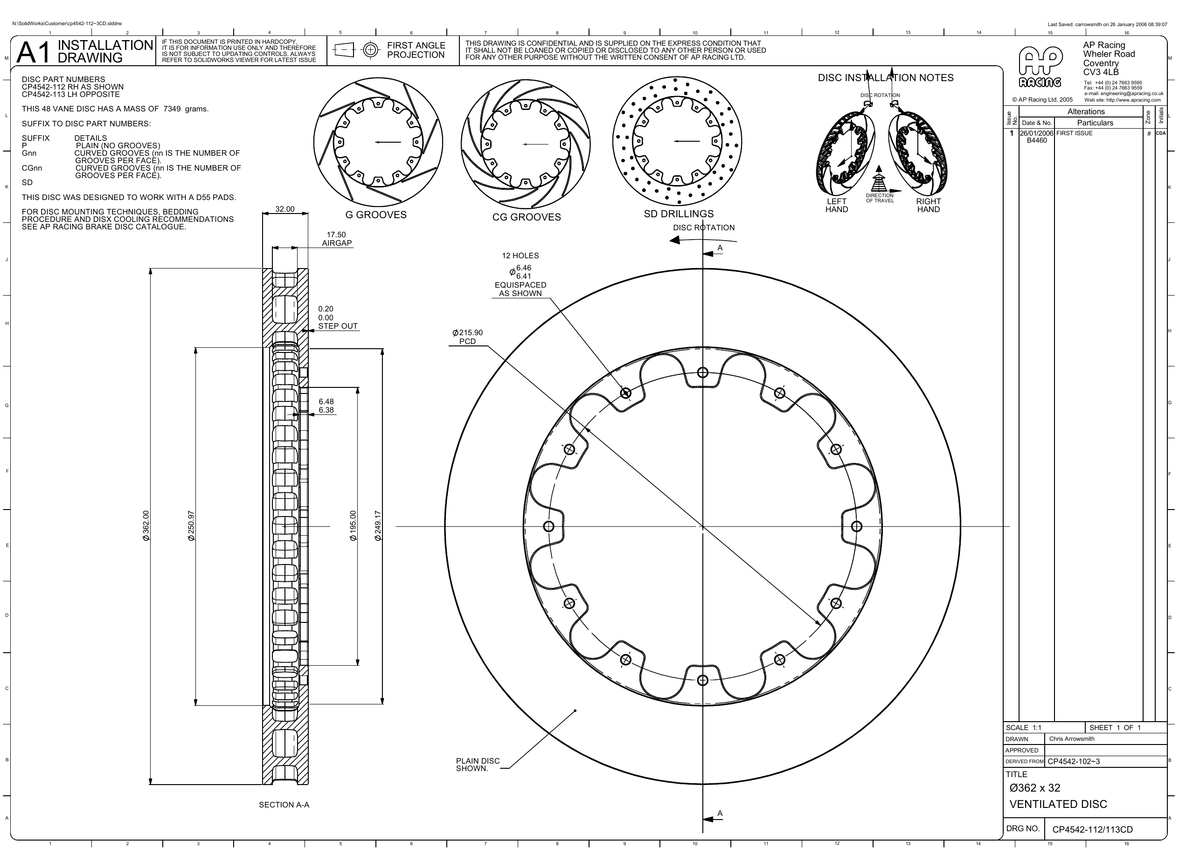

• AP Racing Ventilated Brake Disc 362x32mm (CP4542-112/113) technical drawing
  • SKU: CP4542-112CG12

AP Racing Ventilated Brake Disc 362x32mm (CP4542-112/113)

449 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 362x32mm (CP4542-112/113)

Outside diameter: 362 mm
Thickness: 32 mm
Mounting PCD: 215.9 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 251 mm
Inside flange diameter: 195 mm
Mounting flange thickness: 6.43 mm
Max pad depth: D54
Number of vanes: 48
Air gap: 17.5 mm
Approx. disc weight: 7.3 kg
Face types available: CG12/SD

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 12 curved grooves (CG12) D54 7.3 kg CP4542-112CG12
Left 12 curved grooves (CG12) D54 7.3 kg CP4542-113CG12

Face style notes

CG12: curved grooves, number is grooves per face.

AP Racing part numbers: CP4542-112CG12, CP4542-113CG12.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
