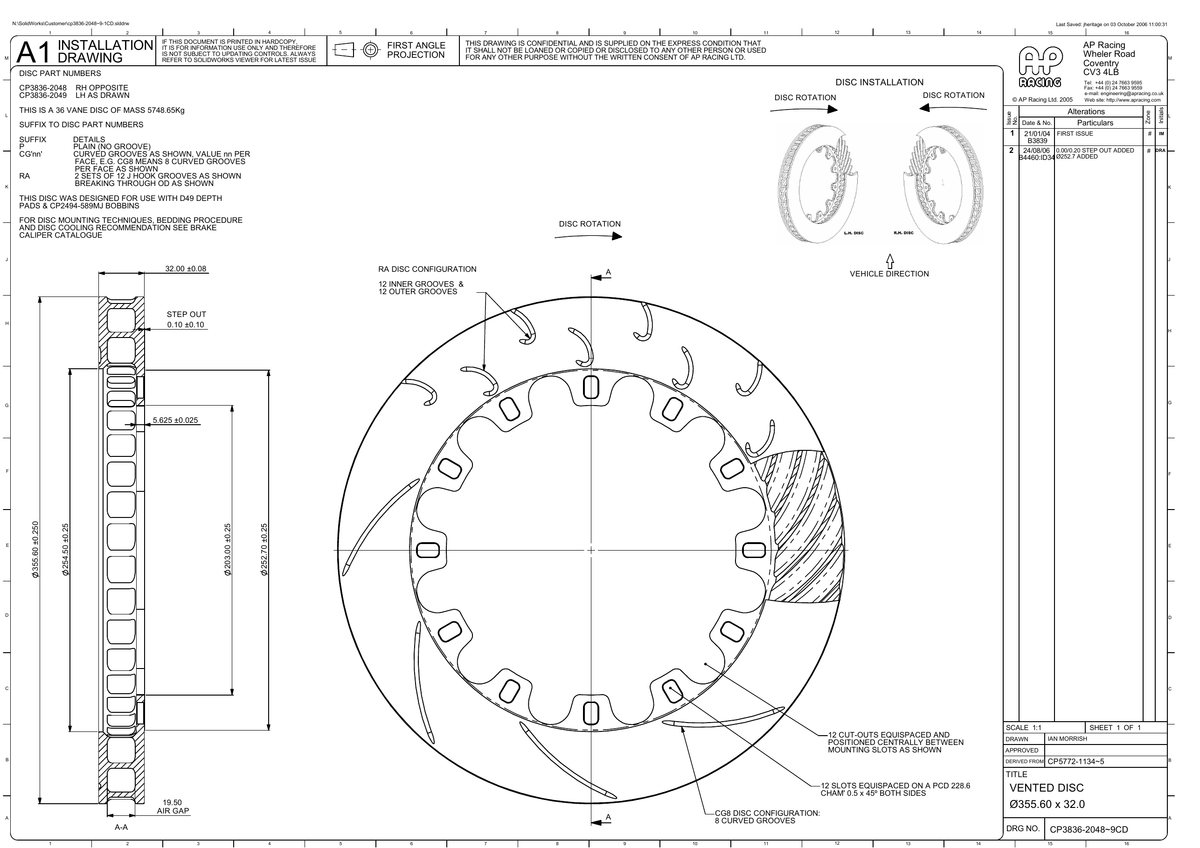

• AP Racing Ventilated Brake Disc 356x32mm (CP3836-2048/2049) technical drawing
  • SKU: CP3836-2048CG8

AP Racing Ventilated Brake Disc 356x32mm (CP3836-2048/2049)

707 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 356x32mm (CP3836-2048/2049)

Outside diameter: 356 mm
Thickness: 32 mm
Mounting PCD: 228.6 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP2494-589MJ
Eye diameter: 254.5 mm
Inside flange diameter: 203 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D49
Number of vanes: 36
Air gap: 19.5 mm
Approx. disc weight: 5.7 kg
Face types available: CG8/RA

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D49 5.7 kg CP3836-2048CG8
Left 8 curved grooves (CG8) D49 5.7 kg CP3836-2049CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP3836-2048CG8, CP3836-2049CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.

View full details
