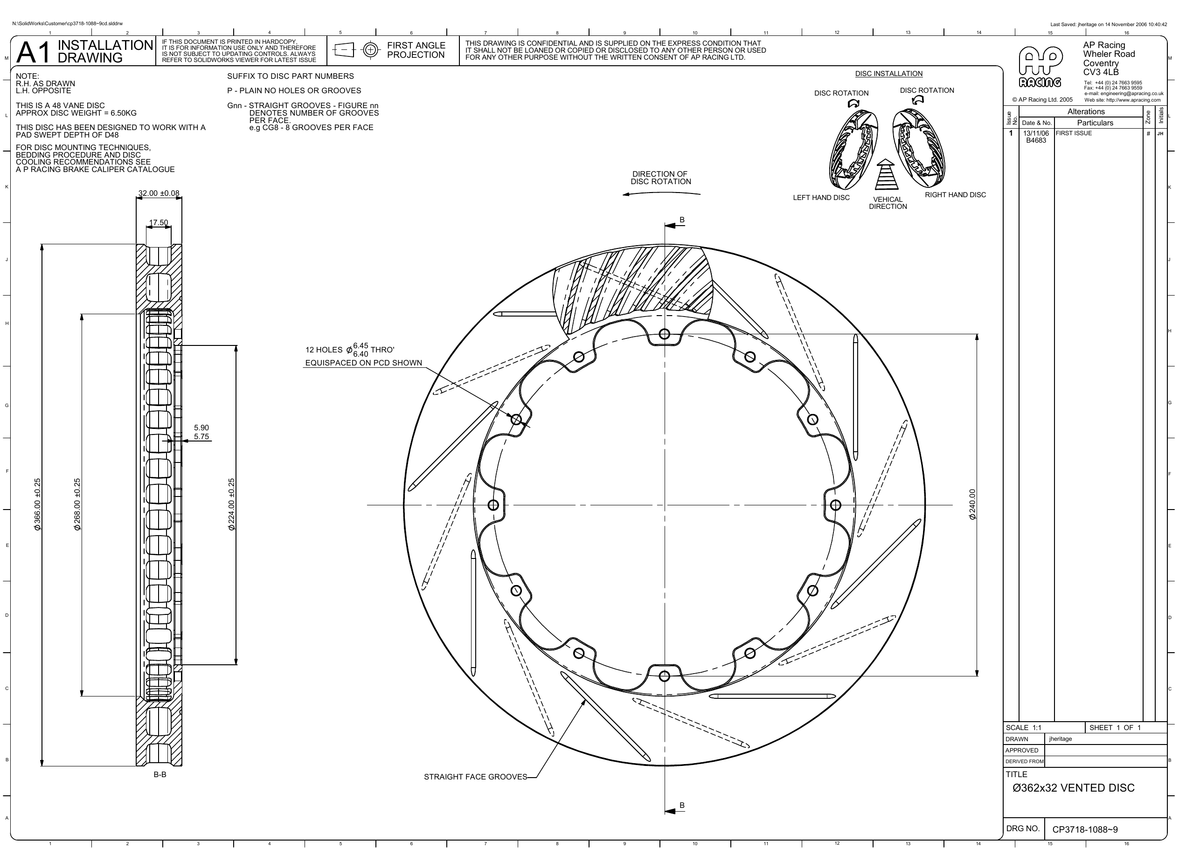

AP Racing Ventilated Brake Disc 366x32mm (CP3718-1088/1089)
770 €
/ per
Tax included.
Not in stock, available to order
Product description
AP Racing Ventilated Brake Disc 366x32mm (CP3718-1088/1089)
Outside diameter: 366 mm
Thickness: 32 mm
Mounting PCD: 240 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 268 mm
Inside flange diameter: 224 mm
Mounting flange thickness: 6.4 mm
Max pad depth: D48
Number of vanes: 48
Air gap: 17.5 mm
Approx. disc weight: 6.5 kg
Face types available: G8/GA
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
J-hook groove pattern (GA)
D48
6.5 kg
CP3718-1088GA
Right
8 straight grooves (G8)
D48
6.5 kg
CP3718-1088G8
Left
J-hook groove pattern (GA)
D48
6.5 kg
CP3718-1089GA
Left
8 straight grooves (G8)
D48
6.5 kg
CP3718-1089G8
Face style notes
GA: AP Racing J-hook groove pattern.
G8: straight grooves, number is grooves per face.
AP Racing part numbers: CP3718-1088GA, CP3718-1088G8, CP3718-1089GA, CP3718-1089G8.
