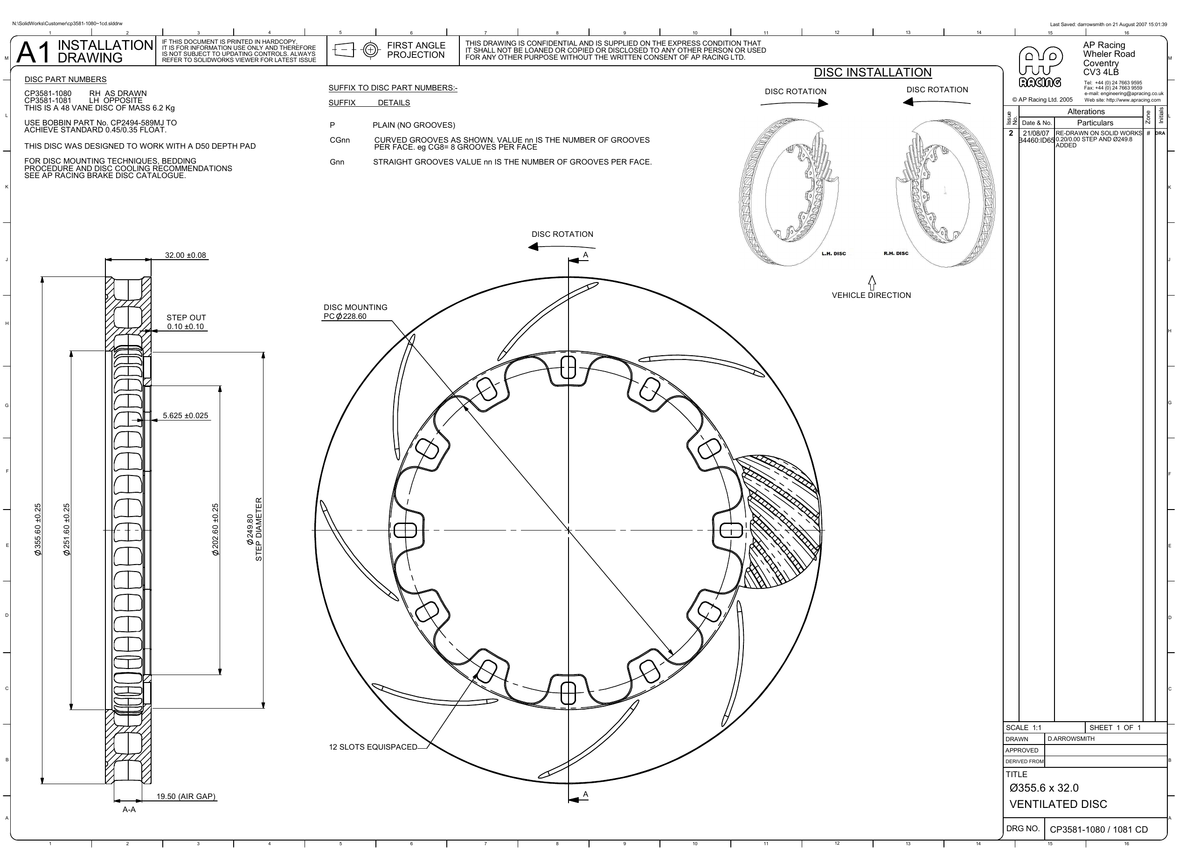

• AP Racing Ventilated Brake Disc 356x32mm (CP3581-1080/1) technical drawing
  • SKU: CP3581-1080G8

AP Racing Ventilated Brake Disc 356x32mm (CP3581-1080/1)

665 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 356x32mm (CP3581-1080/1)

Outside diameter: 356.0 mm
Thickness: 32.0 mm
Mounting PCD: 228.6 mm
Mounting holes: 12
Fixing type: S/Bobbin

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) 51 mm 6.6 kg CP3581-1080G8
Left 8 straight grooves (G8) 51 mm 6.6 kg CP3581-1081G8

Disc weights are reference values and can vary with the face machining. They exclude packaging.

Groove and drilling styles

G8: 8 straight, forward-facing grooves per face.

AP Racing part numbers: CP3581-1080G8, CP3581-1081G8.

Check the part number and mounting dimensions against your application. See the AP Racing catalogue for full disc details.

For ordering assistance, email info@radaauto.ee.
