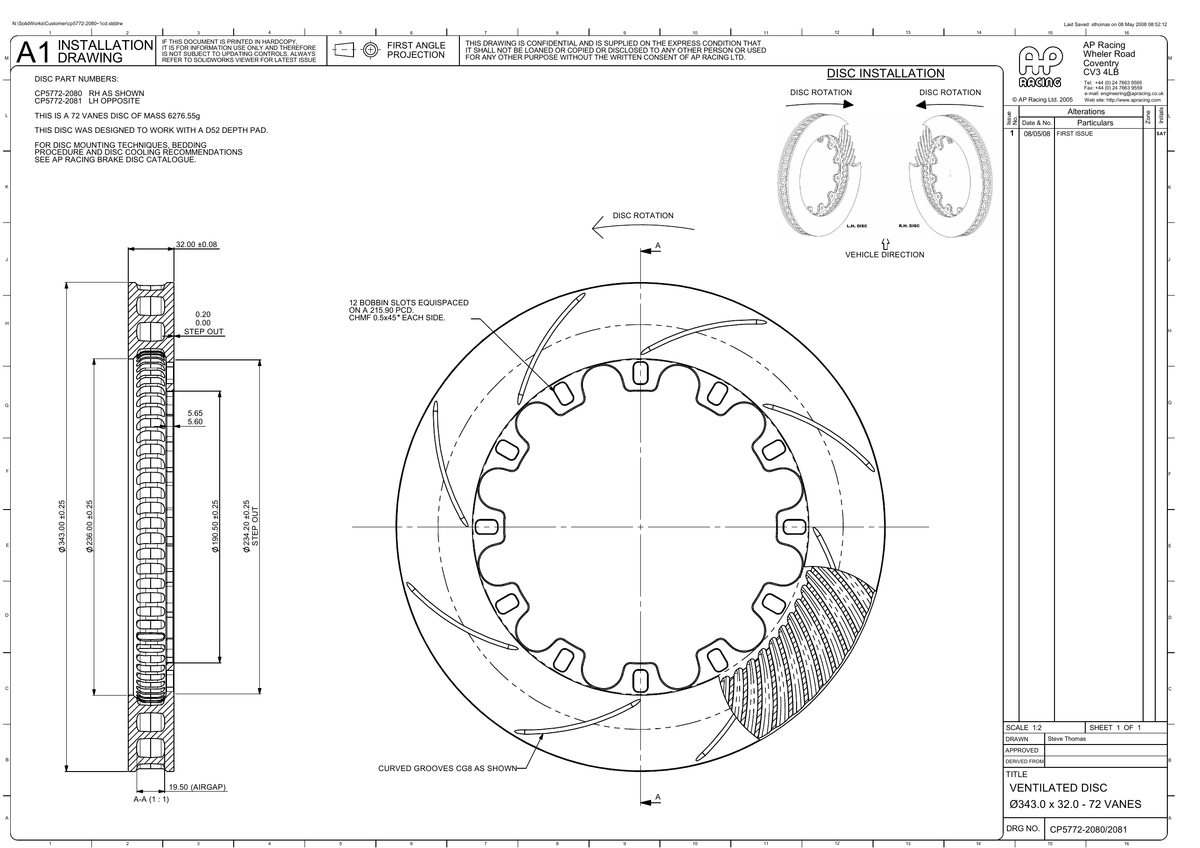

• AP Racing Ventilated Brake Disc 343x32mm (CP5772-2080/2081) technical drawing
  • SKU: CP5772-2080CG8

AP Racing Ventilated Brake Disc 343x32mm (CP5772-2080/2081)

694 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 343x32mm (CP5772-2080/2081)

Outside diameter: 343 mm
Thickness: 32 mm
Mounting PCD: 215.9 mm
Mounting holes: 12
Fixing type: Floating
Eye diameter: 236 mm
Inside flange diameter: 190.5 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D51
Number of vanes: 72
Air gap: 20 mm
Face types available: CG8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D51 — kg CP5772-2080CG8
Left 8 curved grooves (CG8) D51 — kg CP5772-2081CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP5772-2080CG8, CP5772-2081CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.

View full details
AP Racing Ventilated Brake Disc 343x32mm (CP5772-2080/2081) technical drawing

AP Racing Ventilated Brake Disc 343x32mm (CP5772-2080/2081)
