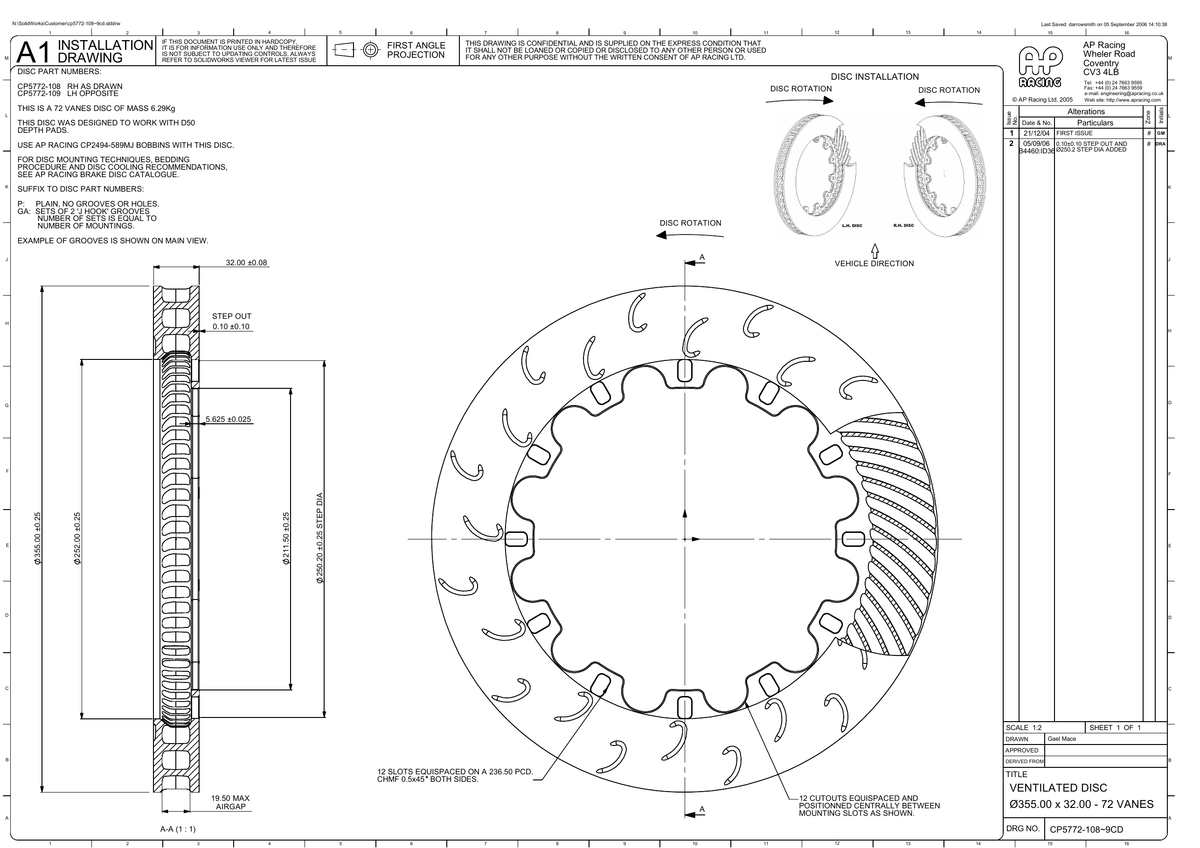

AP Racing Ventilated Brake Disc 355x32mm (CP5772-108/109)
694 €
/ per
Tax included.
Not in stock, available to order
Product description
AP Racing Ventilated Brake Disc 355x32mm (CP5772-108/109)
Outside diameter: 355 mm
Thickness: 32 mm
Mounting PCD: 236.5 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP2494-589MJ
Eye diameter: 252 mm
Inside flange diameter: 211.5 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D51
Number of vanes: 72
Air gap: 20 mm
Approx. disc weight: 6.3 kg
Face types available: CG8/GA
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
8 curved grooves (CG8)
D51
6.3 kg
CP5772-108CG8
Right
J-hook groove pattern (GA)
D51
6.3 kg
CP5772-108GA
Left
8 curved grooves (CG8)
D51
6.3 kg
CP5772-109CG8
Left
J-hook groove pattern (GA)
D51
6.3 kg
CP5772-109GA
Face style notes
CG8: curved grooves, number is grooves per face.
GA: AP Racing J-hook groove pattern.
AP Racing part numbers: CP5772-108CG8, CP5772-108GA, CP5772-109CG8, CP5772-109GA.
