AP Racing Ventilated Brake Disc 355x32mm (CP4542-106/107)
393 €
/ per
Tax included.
Not in stock, available to order
Product description

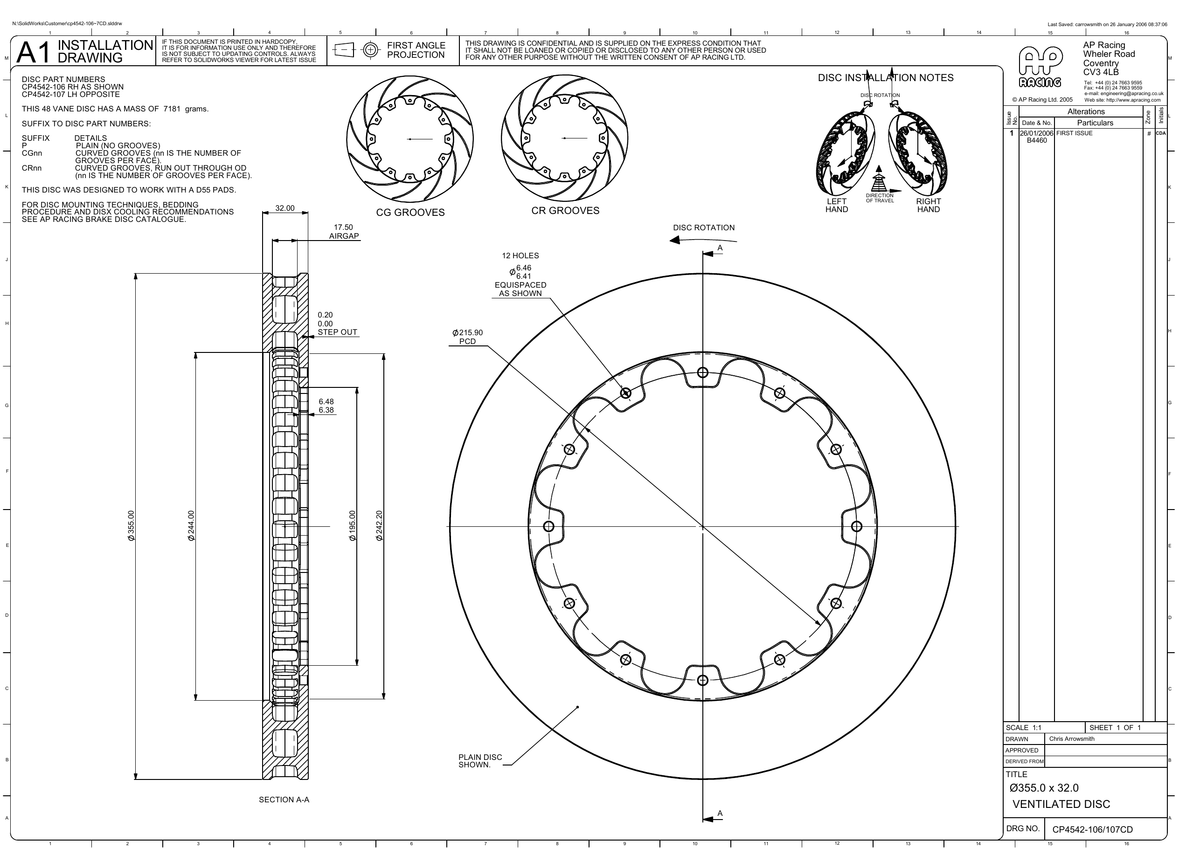

AP Racing Ventilated Brake Disc 355x32mm (CP4542-106/107)
Outside diameter: 355 mm
Thickness: 32 mm
Mounting PCD: 215.9 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 244 mm
Inside flange diameter: 195 mm
Mounting flange thickness: 6.4 mm
Max pad depth: D54
Number of vanes: 48
Air gap: 17.5 mm
Approx. disc weight: 7.3 kg
Face types available: CG12, SD, PG10
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
12 curved grooves (CG12)
D54
7.3 kg
CP4542-106CG12
Left
12 curved grooves (CG12)
D54
7.3 kg
CP4542-107CG12
Right
SD
D54
Not confirmed for SD
CP4542-106SD
Left
SD
D54
Not confirmed for SD
CP4542-107SD
Right
PG10
D54
Not confirmed for PG10
CP4542-106PG10
Left
PG10
D54
Not confirmed for PG10
CP4542-107PG10
Face style notes
CG12: curved grooves, number is grooves per face.
AP Racing part numbers: CP4542-106CG12, CP4542-107CG12.
Additional supplied replacement options: CP4542-106SD, CP4542-107SD, CP4542-106PG10 and CP4542-107PG10. These exact component rows specify 355 x 32 mm, 12 mounting positions on a 215.9 mm pitch circle and D54 pad depth. Confirm the complete part number and fixing arrangement for the existing installation. One replacement disc is supplied per ordered unit; mounting bells and fixing hardware are separate. Packed weight for the additional options is unconfirmed.
