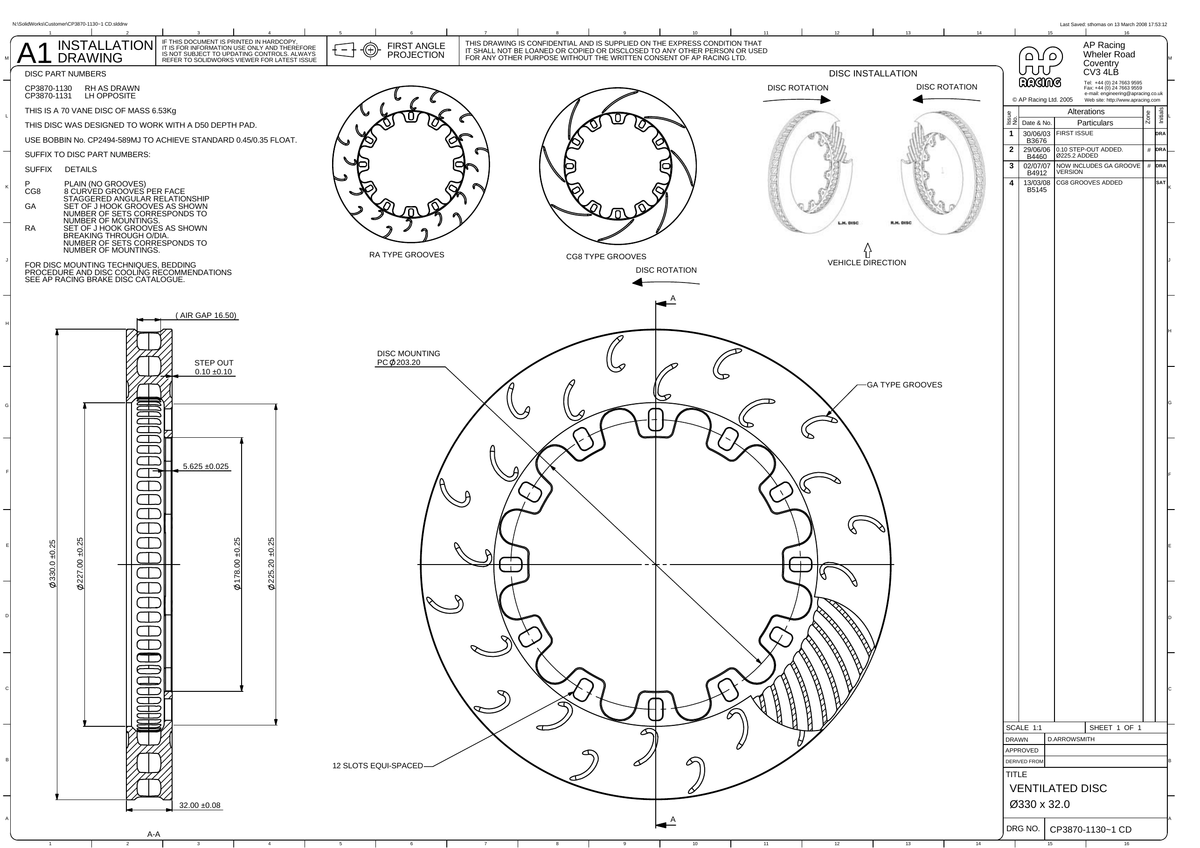

• AP Racing Ventilated Brake Disc 330x32mm (CP3870-1130/1) technical drawing
  • SKU: CP3870-1130CG8

AP Racing Ventilated Brake Disc 330x32mm (CP3870-1130/1)

627 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 330x32mm (CP3870-1130/1)

Outside diameter: 330.0 mm
Thickness: 32.0 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: S/Bobbin

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) 50 mm 6.5 kg CP3870-1130CG8
Right J-hook grooves (GA) 50 mm 6.5 kg CP3870-1130GA
Left 8 curved grooves (CG8) 50 mm 6.5 kg CP3870-1131CG8
Left J-hook grooves (GA) 50 mm 6.5 kg CP3870-1131GA

Disc weights are reference values and can vary with the face machining. They exclude packaging.

Groove and drilling styles

CG8: 8 curved, backward-facing grooves per face.
GA: J-hook grooves that stop before the outer edge.

AP Racing part numbers: CP3870-1130CG8, CP3870-1130GA, CP3870-1131CG8, CP3870-1131GA.

Check the part number and mounting dimensions against your application. See the AP Racing catalogue for full disc details.
