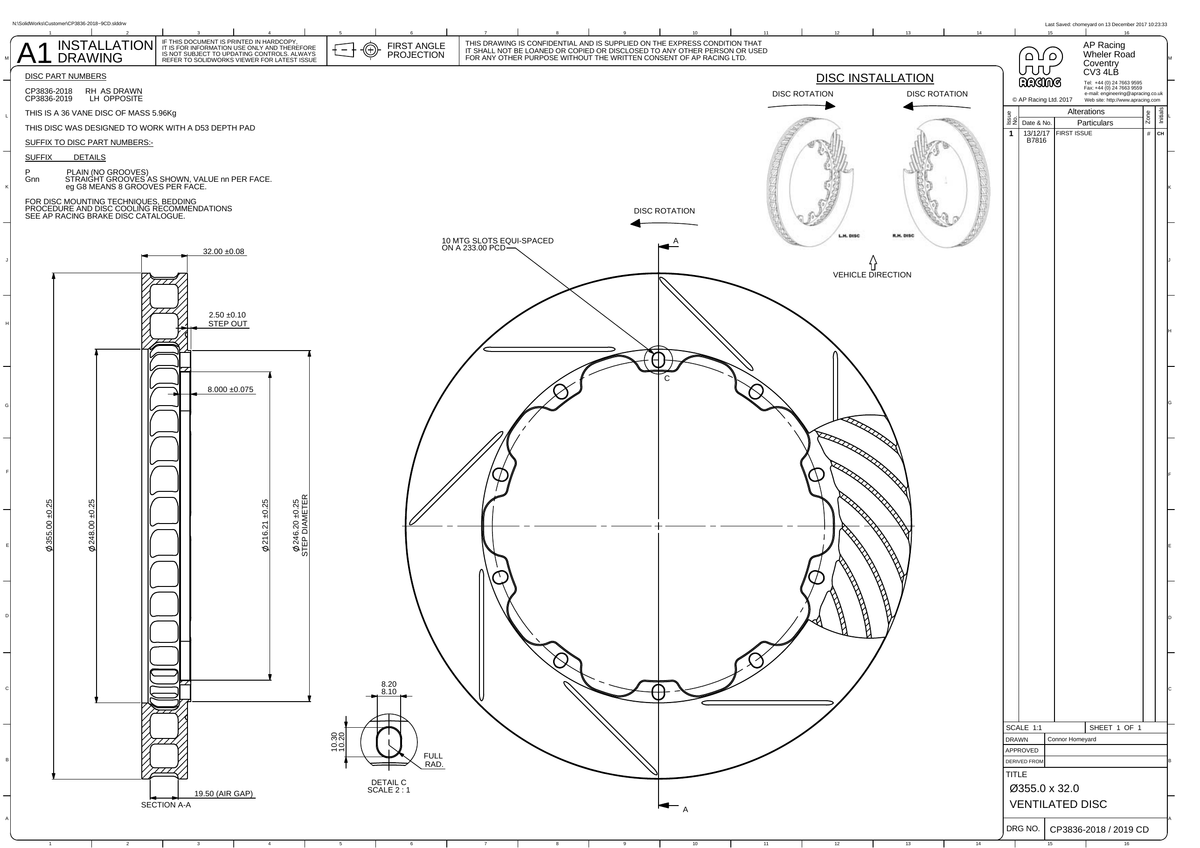

• AP Racing Ventilated Brake Disc 355x32mm (CP3836-2018/2019) technical drawing
  • SKU: CP3836-2018G8

AP Racing Ventilated Brake Disc 355x32mm (CP3836-2018/2019)

759 €
Tax included.
Quantity

Product description

AP Racing Ventilated Brake Disc 355x32mm (CP3836-2018/2019)

  • Outside diameter: 355 mm
  • Thickness: 32 mm
  • Mounting PCD: 233 mm
  • Mounting holes: 10
  • Fixing type: Floating
  • Eye diameter: 248 mm
  • Inside flange diameter: 217 mm
  • Mounting flange thickness: 8 mm
  • Max pad depth: D51
  • Number of vanes: 36
  • Air gap: 19.5 mm
  • Approx. disc weight: 5.8 kg
  • Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D51 5.8 kg CP3836-2018G8
Left 8 straight grooves (G8) D51 5.8 kg CP3836-2019G8

Face style notes

  • G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3836-2018G8, CP3836-2019G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
