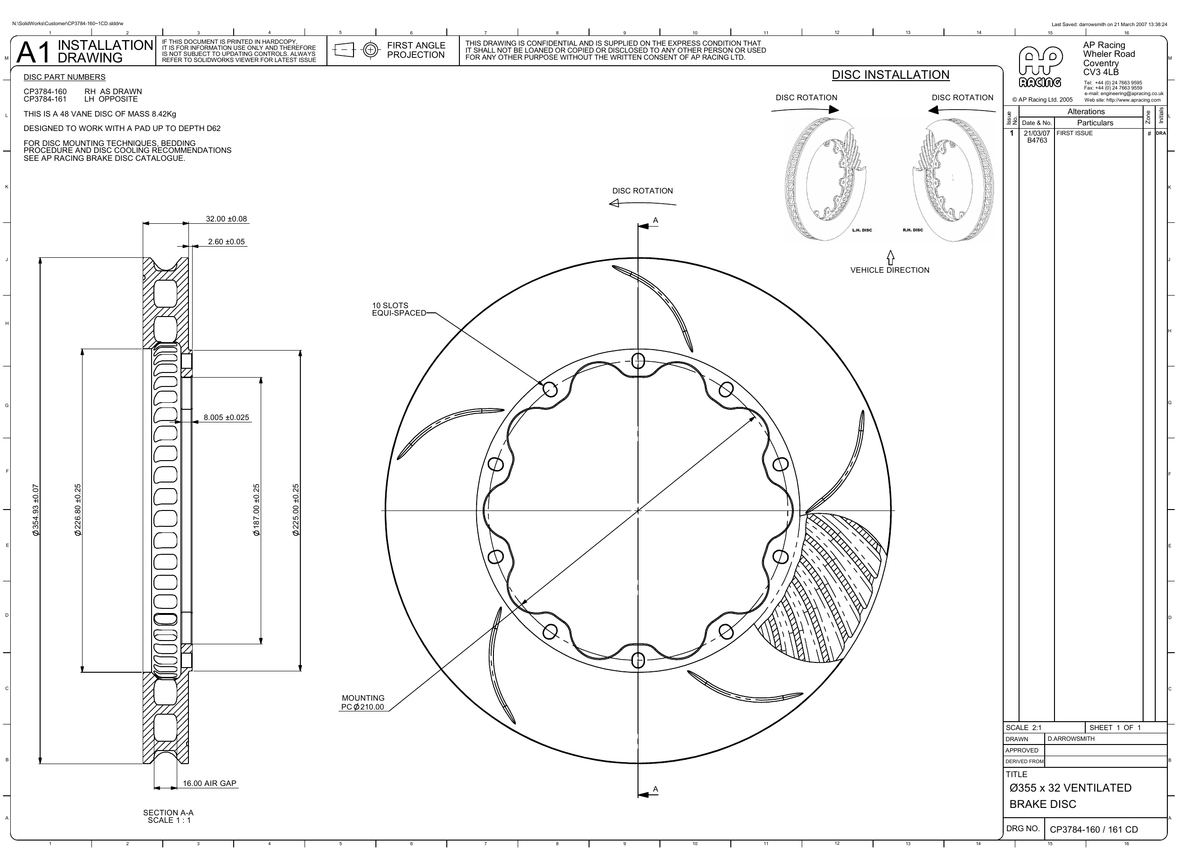

AP Racing Ventilated Brake Disc 355x32mm (CP3784-160/161)

AP Racing Ventilated Brake Disc 355x32mm (CP3784-160/161)

Outside diameter: 355 mm
Thickness: 32 mm
Mounting PCD: 210 mm
Mounting holes: 10
Fixing type: Floating
Eye diameter: 226.8 mm
Inside flange diameter: 187 mm
Mounting flange thickness: 8 mm
Max pad depth: D62
Number of vanes: 48
Air gap: 16 mm
Approx. disc weight: 8.4 kg
Face types available: CG5
AP comments: Mounting flange stepped out 2.5mm, Brembo mounting

Select the correct side and face style from the available options.

Face style notes

CG5: curved grooves, number is grooves per face.

AP Racing part numbers: CP3784-160CG5, CP3784-161CG5.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
