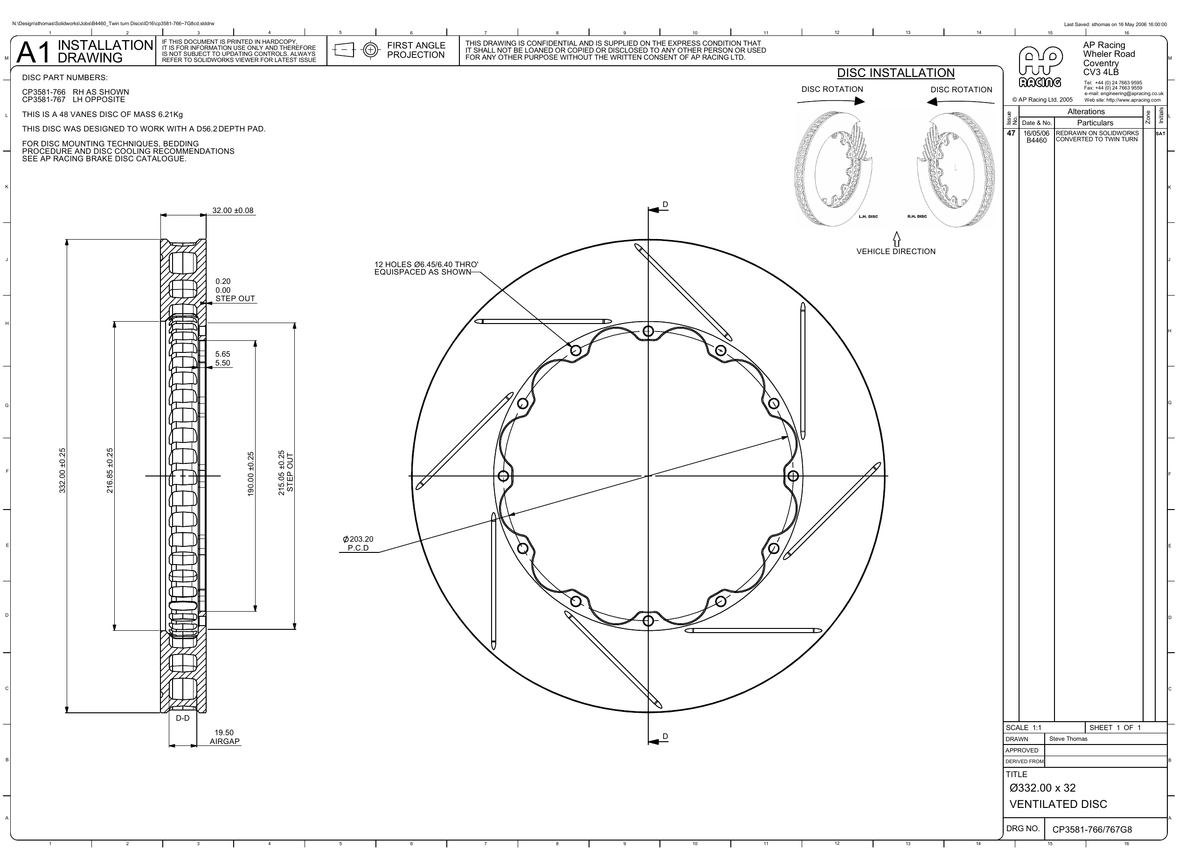

• AP Racing Ventilated Brake Disc 332x32mm (CP3581-766/767) technical drawing
  • SKU: CP3581-766G8

AP Racing Ventilated Brake Disc 332x32mm (CP3581-766/767)

611 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 332x32mm (CP3581-766/767)

Outside diameter: 332 mm
Thickness: 32 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 216.8 mm
Inside flange diameter: 190 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D58
Number of vanes: 48
Air gap: 19.5 mm
Approx. disc weight: 6.2 kg
Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D58 6.2 kg CP3581-766G8
Left 8 straight grooves (G8) D58 6.2 kg CP3581-767G8

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3581-766G8, CP3581-767G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
