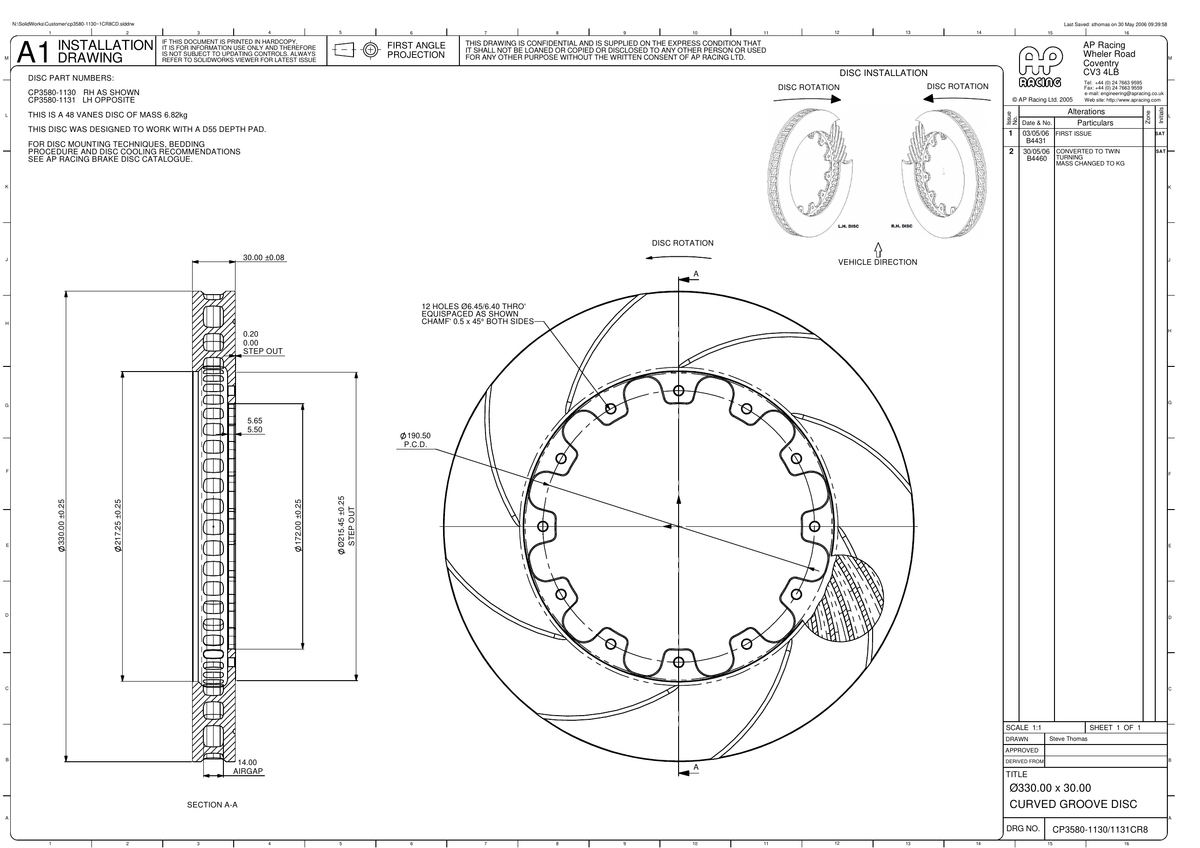

AP Racing Ventilated Brake Disc 330x30mm (CP3580-1130/1131)
Outside diameter: 330 mm
Thickness: 30 mm
Mounting PCD: 190.5 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 217.2 mm
Inside flange diameter: 172 mm
Mounting flange thickness: 5.575 mm
Max pad depth: D56
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 6.8 kg
Face types available: CR8
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | AP Racing CR8 face type | D56 | 6.8 kg | CP3580-1130CR8 |
| Left | AP Racing CR8 face type | D56 | 6.8 kg | CP3580-1131CR8 |
Face style notes
CR8: AP Racing face type.
AP Racing part numbers: CP3580-1130CR8, CP3580-1131CR8.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
