Not in stock, available to order

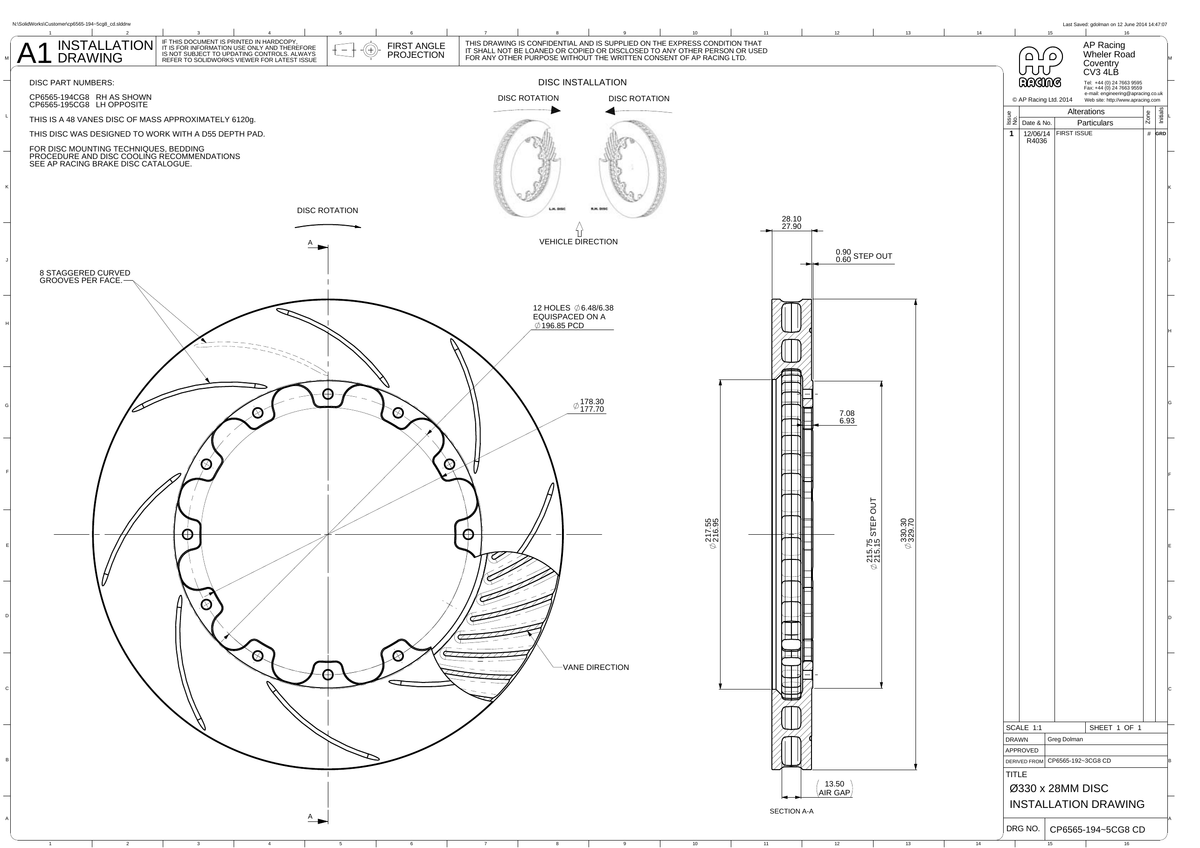

AP Racing Ventilated Brake Disc 330x28mm (CP6565-194/195)
Outside diameter: 330 mm
Thickness: 28 mm
Mounting PCD: 196.85 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.43 mm
Eye diameter: 217.25 mm
Inside flange diameter: 215.45 mm
Mounting flange thickness: 7.01 mm
Max pad depth: D55
Number of vanes: 48
Air gap: 13.5 mm
Approx. disc weight: 6.1 kg
Face types available: CG8
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 8 curved grooves (CG8) | D55 | 6.1 kg | CP6565-194CG8 |
| Left | 8 curved grooves (CG8) | D55 | 6.1 kg | CP6565-195CG8 |
Face style notes
CG8: curved grooves, number is grooves per face.
AP Racing part numbers: CP6565-194CG8, CP6565-195CG8.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.
