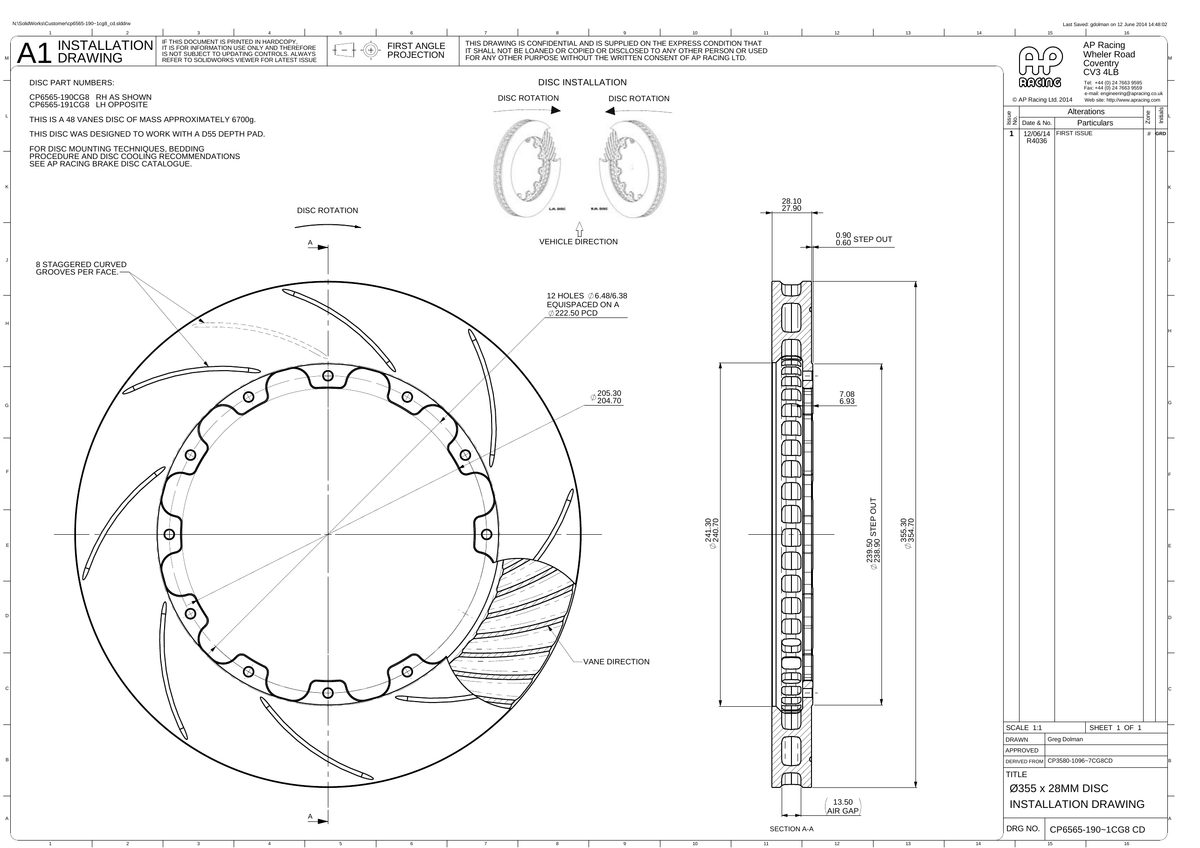

• AP Racing Ventilated Brake Disc 355x28mm (CP6565-190/191) technical drawing
  • SKU: CP6565-190CG8

AP Racing Ventilated Brake Disc 355x28mm (CP6565-190/191)

533 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 355x28mm (CP6565-190/191)

Outside diameter: 355 mm
Thickness: 28 mm
Mounting PCD: 222.5 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 241 mm
Inside flange diameter: 239.2 mm
Mounting flange thickness: 7.01 mm
Max pad depth: D55
Number of vanes: 48
Air gap: 13.5 mm
Approx. disc weight: 6.7 kg
Face types available: CG8
AP comments: Mounting flange stepped out 0.75mm

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D55 6.7 kg CP6565-190CG8
Left 8 curved grooves (CG8) D55 6.7 kg CP6565-191CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP6565-190CG8, CP6565-191CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
