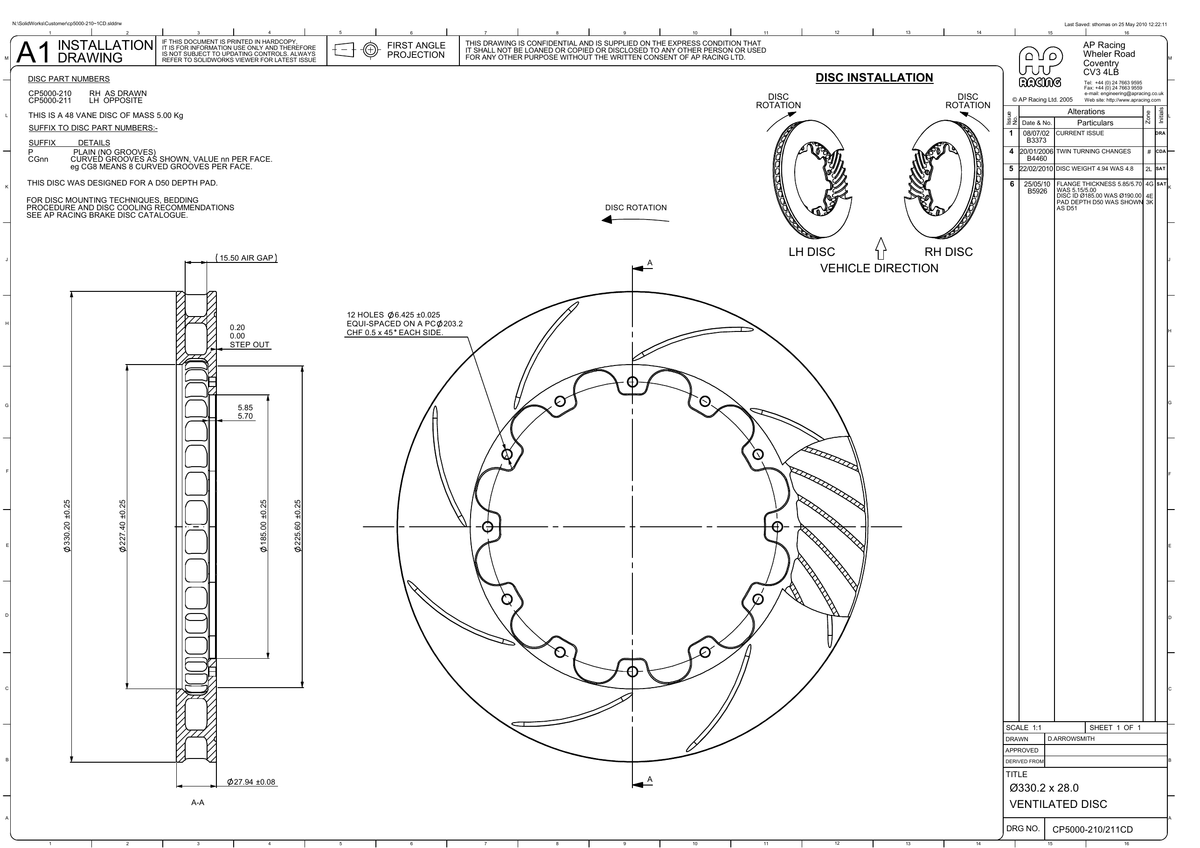

• AP Racing Ventilated Brake Disc 330x28mm (CP5000-210/211) technical drawing
  • SKU: CP5000-210CG8

AP Racing Ventilated Brake Disc 330x28mm (CP5000-210/211)

482 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 330x28mm (CP5000-210/211)

Outside diameter: 330 mm
Thickness: 28 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 227.4 mm
Inside flange diameter: 185 mm
Mounting flange thickness: 5.1 mm
Max pad depth: D51
Number of vanes: 36
Air gap: 14.5 mm
Approx. disc weight: 4.94 kg
Face types available: CG8
AP comments: Pro 5000 disc

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D51 4.94 kg CP5000-210CG8
Left 8 curved grooves (CG8) D51 4.94 kg CP5000-211CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP5000-210CG8, CP5000-211CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
