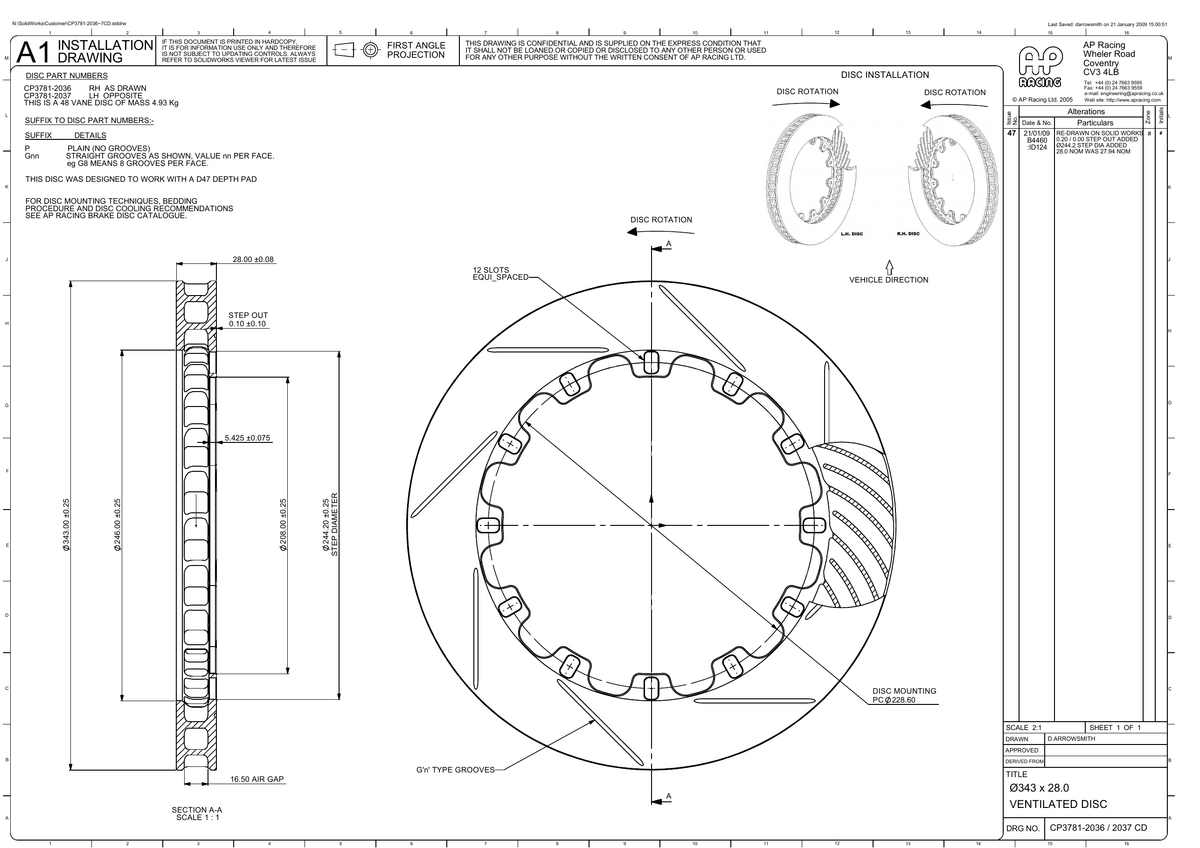

• AP Racing Ventilated Brake Disc 343x28mm (CP3781-2036/2037) technical drawing
  • SKU: CP3781-2036G8

AP Racing Ventilated Brake Disc 343x28mm (CP3781-2036/2037)

718 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 343x28mm (CP3781-2036/2037)

Outside diameter: 343 mm
Thickness: 28 mm
Mounting PCD: 228.6 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP2494-591MH
Eye diameter: 246 mm
Inside flange diameter: 208 mm
Mounting flange thickness: 5.4 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 16.5 mm
Approx. disc weight: 5.2 kg
Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D51 5.2 kg CP3781-2036G8
Left 8 straight grooves (G8) D51 5.2 kg CP3781-2037G8

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3781-2036G8, CP3781-2037G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
