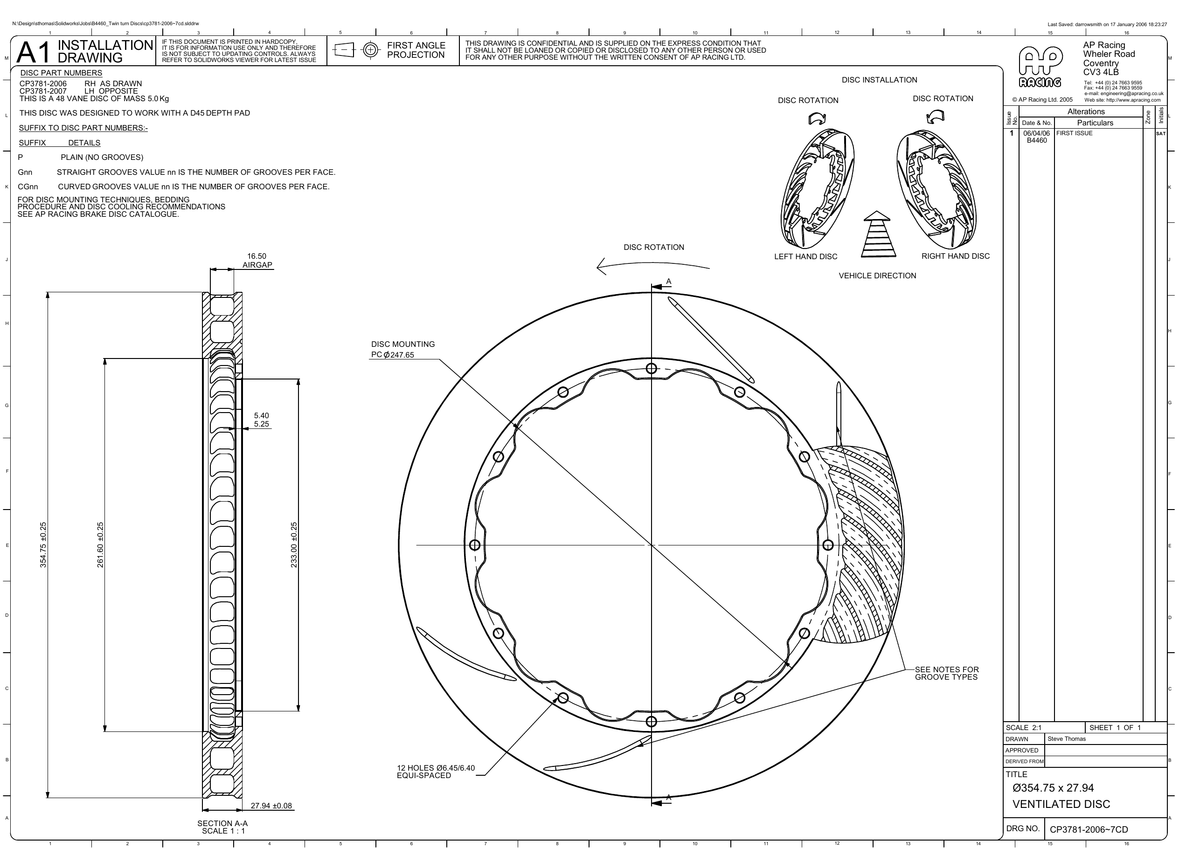

AP Racing Ventilated Brake Disc 355x28mm (CP3781-2006/2007)

AP Racing Ventilated Brake Disc 355x28mm (CP3781-2006/2007)

Outside diameter: 355 mm
Thickness: 28 mm
Mounting PCD: 247.6 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 261.6 mm
Inside flange diameter: 233 mm
Mounting flange thickness: 5.3 mm
Max pad depth: D46
Number of vanes: 48
Air gap: 16.5 mm
Approx. disc weight: 5.1 kg
Face types available: G8
AP comments: S1600 Disc

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3781-2006G8, CP3781-2007G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
