AP Racing Ventilated Brake Disc 325x28mm (CP3580-294/295)
516 €
/ per
Tax included.
Not in stock, available to order
Product description

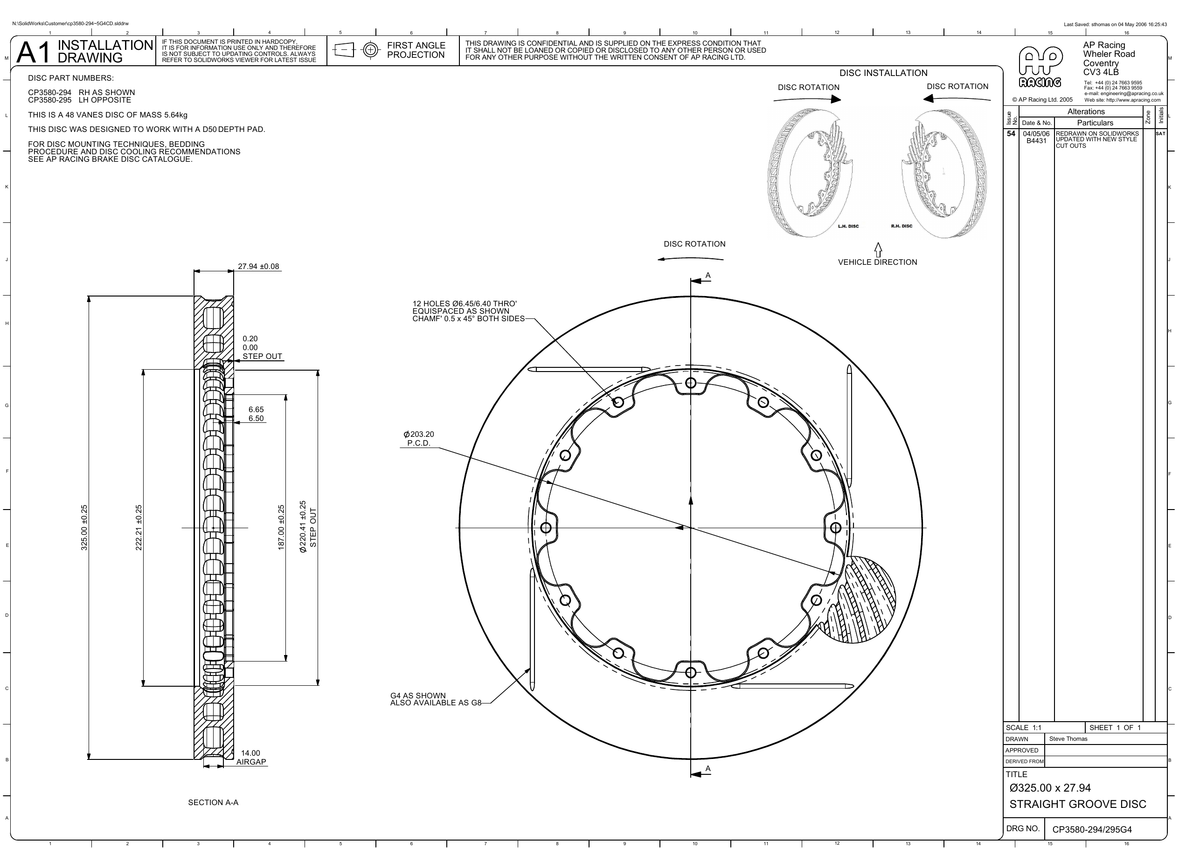

AP Racing Ventilated Brake Disc 325x28mm (CP3580-294/295)
Outside diameter: 325 mm
Thickness: 28 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 222 mm
Inside flange diameter: 187 mm
Mounting flange thickness: 6.6 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.8 kg
Face types available: G4/G8
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
4 straight grooves (G4)
D51
5.8 kg
CP3580-294G4
Right
8 straight grooves (G8)
D51
5.8 kg
CP3580-294G8
Left
4 straight grooves (G4)
D51
5.8 kg
CP3580-295G4
Left
8 straight grooves (G8)
D51
5.8 kg
CP3580-295G8
Face style notes
G4: straight grooves, number is grooves per face.
G8: straight grooves, number is grooves per face.
AP Racing part numbers: CP3580-294G4, CP3580-294G8, CP3580-295G4, CP3580-295G8.
