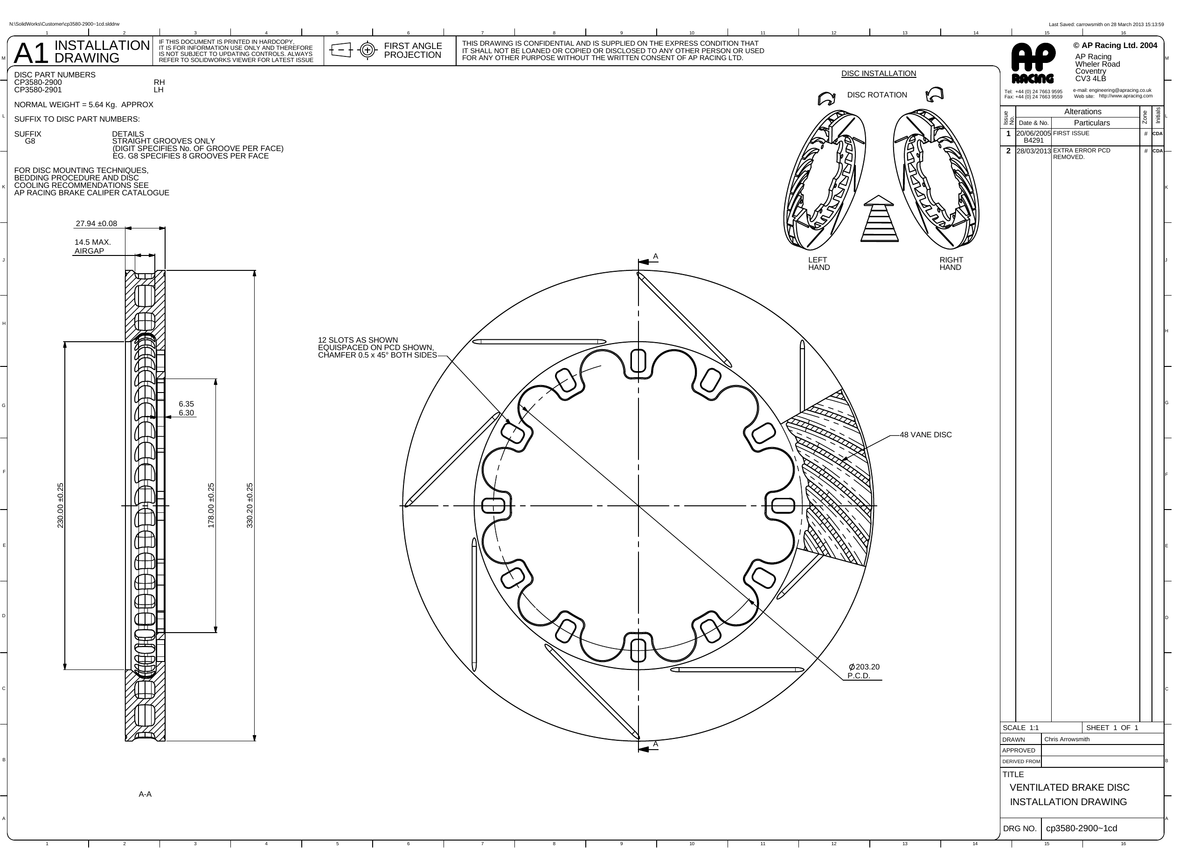

AP Racing Ventilated Brake Disc 330x28mm (CP3580-2900/2901)

AP Racing Ventilated Brake Disc 330x28mm (CP3580-2900/2901)

Outside diameter: 330 mm
Thickness: 28 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Floating
Eye diameter: 230 mm
Inside flange diameter: 178 mm
Mounting flange thickness: 6.3 mm
Max pad depth: D50
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.6 kg
Face types available: G8

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3580-2900G8, CP3580-2901G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
