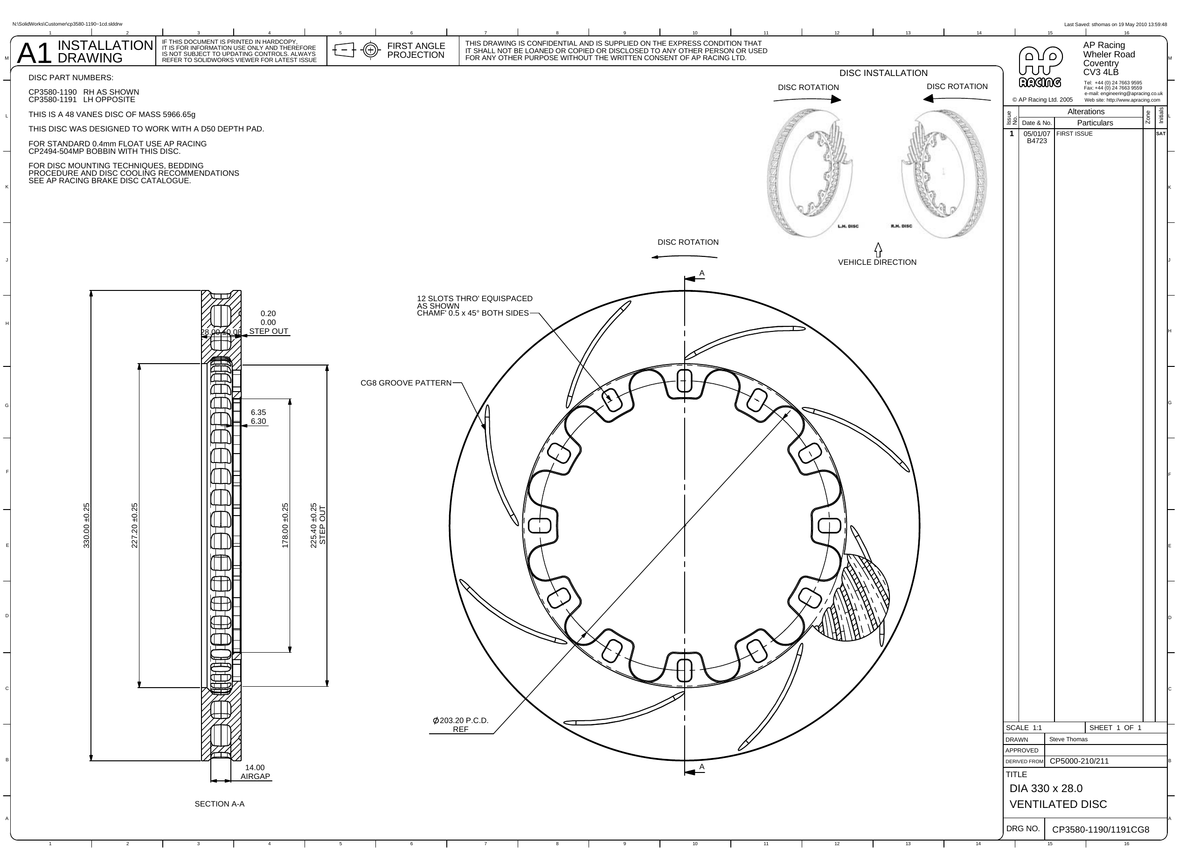

• AP Racing Ventilated Brake Disc 330x28mm (CP3580-1190/1191) technical drawing
  • SKU: CP3580-1190CG8

AP Racing Ventilated Brake Disc 330x28mm (CP3580-1190/1191)

581 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 330x28mm (CP3580-1190/1191)

Outside diameter: 330 mm
Thickness: 28 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP2494-504MP
Eye diameter: 227.2 mm
Inside flange diameter: 178 mm
Mounting flange thickness: 6.32 mm
Max pad depth: D50
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.8 kg
Face types available: CG8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D50 5.8 kg CP3580-1190CG8
Left 8 curved grooves (CG8) D50 5.8 kg CP3580-1191CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP3580-1190CG8, CP3580-1191CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
