AP Racing Ventilated Brake Disc 328x28mm (CP3047-372/373)
600 €
/ per
Tax included.
Not in stock, available to order
Product description

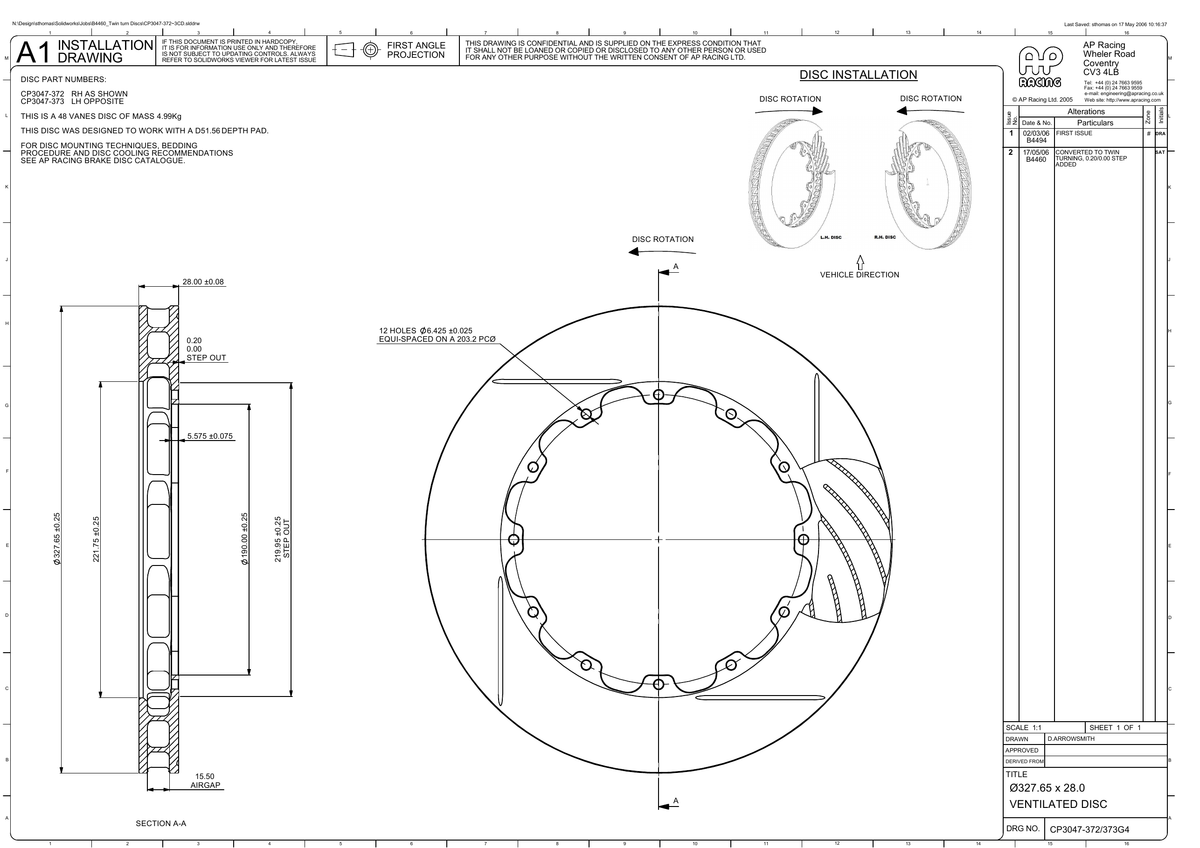

AP Racing Ventilated Brake Disc 328x28mm (CP3047-372/373)
Outside diameter: 328 mm
Thickness: 28 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 221.8 mm
Inside flange diameter: 190 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D51
Number of vanes: 24
Air gap: 15.5 mm
Approx. disc weight: 5.2 kg
Face types available: G4
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
4 straight grooves (G4)
D51
5.2 kg
CP3047-372G4
Left
4 straight grooves (G4)
D51
5.2 kg
CP3047-373G4
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP3047-372G4, CP3047-373G4.
