AP Racing Ventilated Brake Disc 330x25.4mm (CP3580-1092/1093)
529 €
/ per
Tax included.
Not in stock, available to order
Product description

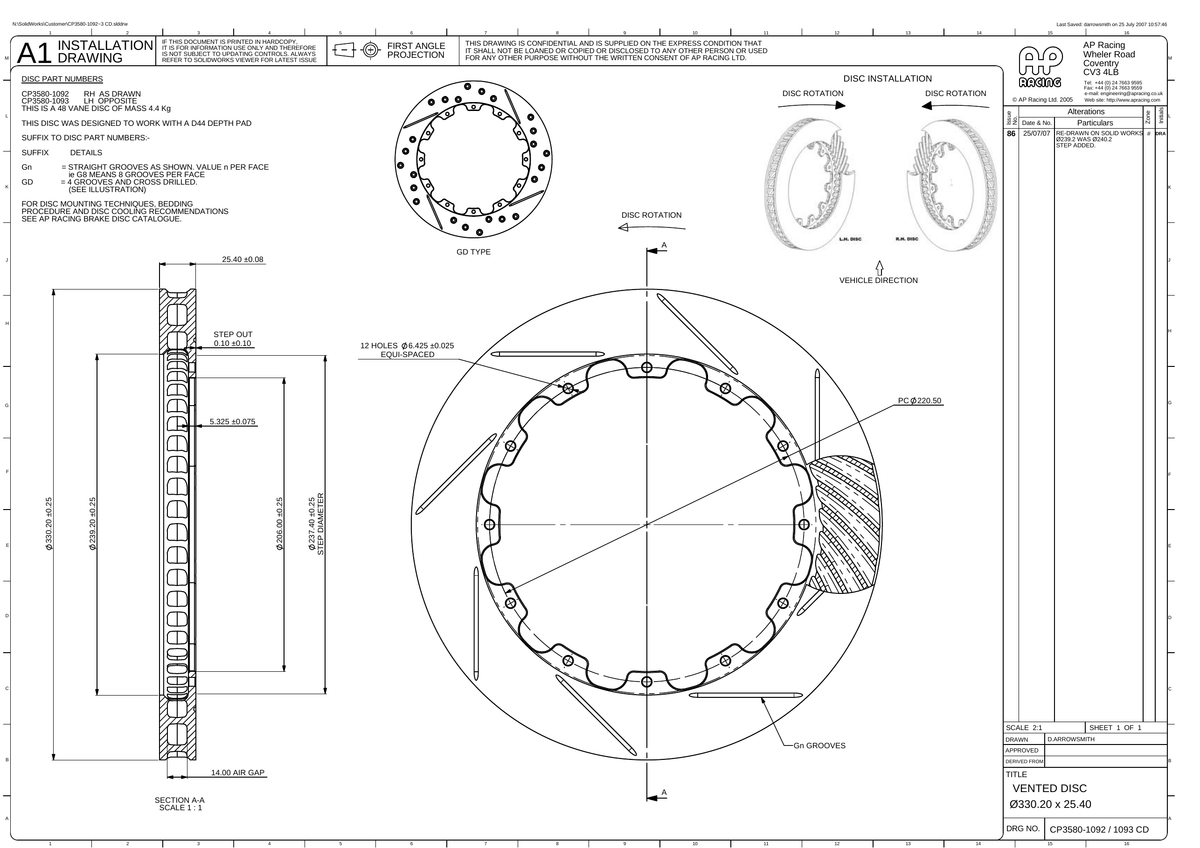

AP Racing Ventilated Brake Disc 330x25.4mm (CP3580-1092/1093)
Outside diameter: 330 mm
Thickness: 25.4 mm
Mounting PCD: 220.5 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 239.2 mm
Inside flange diameter: 206 mm
Mounting flange thickness: 5.3 mm
Max pad depth: D45
Number of vanes: 48
Air gap: 14 mm
Face types available: G8
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
8 straight grooves (G8)
D45
— kg
CP3580-1092G8
Left
8 straight grooves (G8)
D45
— kg
CP3580-1093G8
Face style notes
G8: straight grooves, number is grooves per face.
AP Racing part numbers: CP3580-1092G8, CP3580-1093G8.
