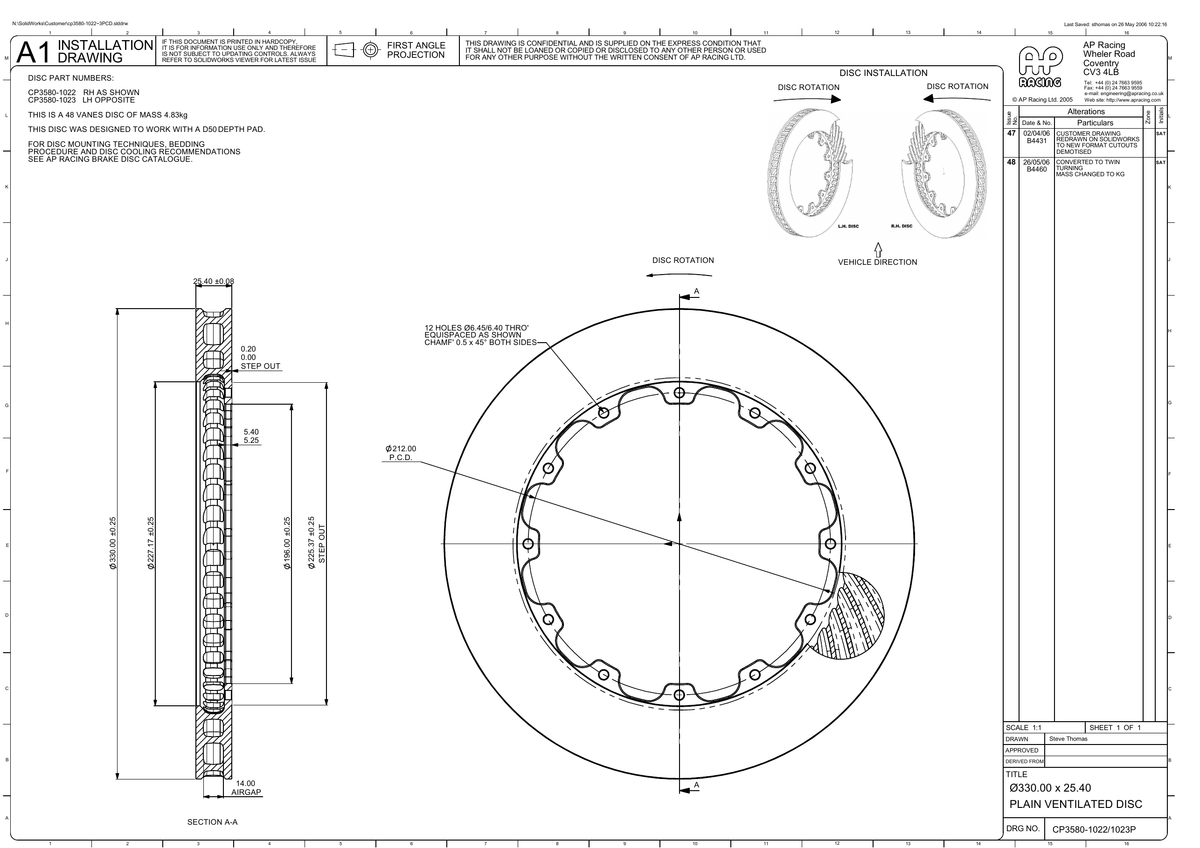

AP Racing Ventilated Brake Disc 330x25.4mm (CP3580-1022/1023)

AP Racing Ventilated Brake Disc 330x25.4mm (CP3580-1022/1023)

Outside diameter: 330 mm
Thickness: 25.4 mm
Mounting PCD: 212 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 228 mm
Inside flange diameter: 196 mm
Mounting flange thickness: 5.3 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.2 kg
Face types available: P

Select the correct side and face style from the available options.

Face style notes

P: plain, no grooves or holes.

AP Racing part numbers: CP3580-1022P, CP3580-1023P.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
