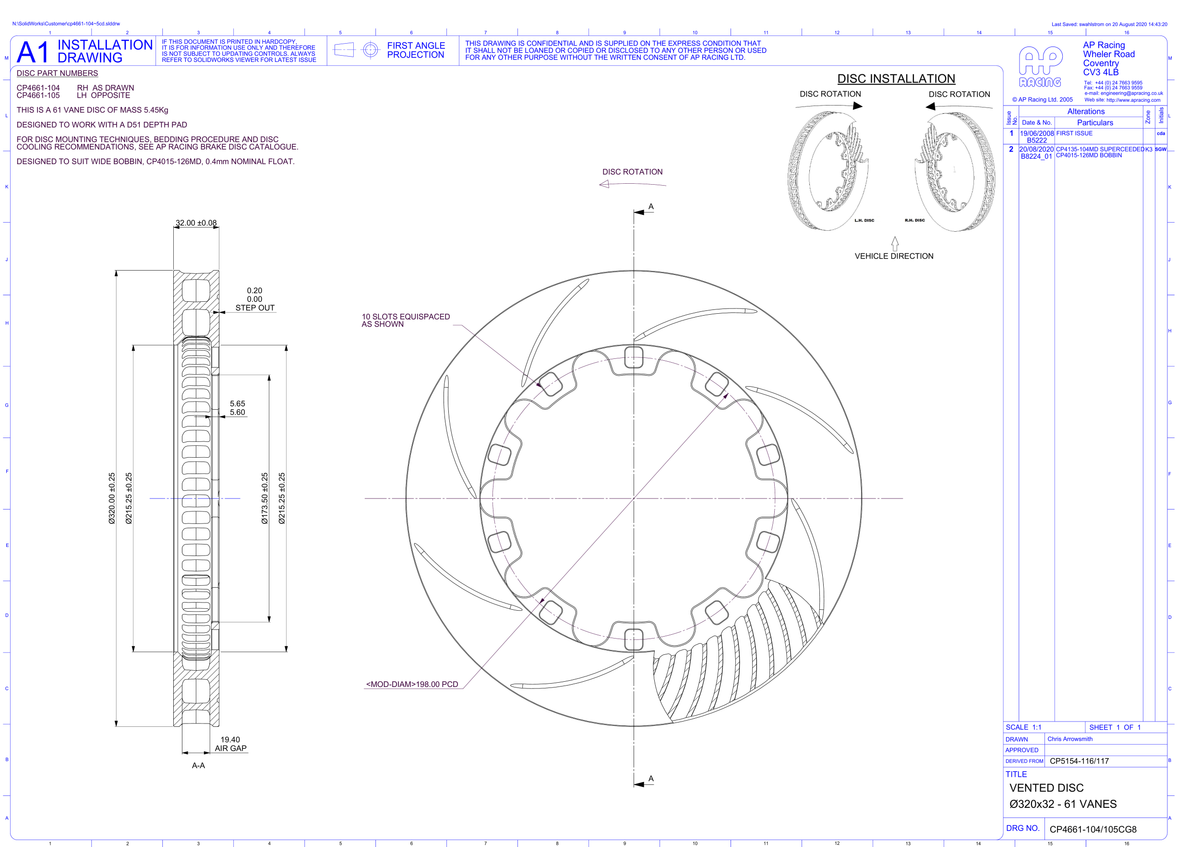

• AP Racing Ventilated Brake Disc 320x32mm (CP4661-104/105) technical drawing
  • SKU: CP4661-104CG8

AP Racing Ventilated Brake Disc 320x32mm (CP4661-104/105)

637 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 320x32mm (CP4661-104/105)

Outside diameter: 320 mm
Thickness: 32 mm
Mounting PCD: 198 mm
Mounting holes: 10
Fixing type: Floating
Eye diameter: 215.3 mm
Inside flange diameter: 173.5 mm
Mounting flange thickness: 5.62 mm
Max pad depth: D51
Number of vanes: 61
Air gap: 20 mm
Approx. disc weight: 5.3 kg
Face types available: CG8
AP comments: Mounting flange stepped out 0.1mm

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D51 5.3 kg CP4661-104CG8
Left 8 curved grooves (CG8) D51 5.3 kg CP4661-105CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP4661-104CG8, CP4661-105CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.

View full details
