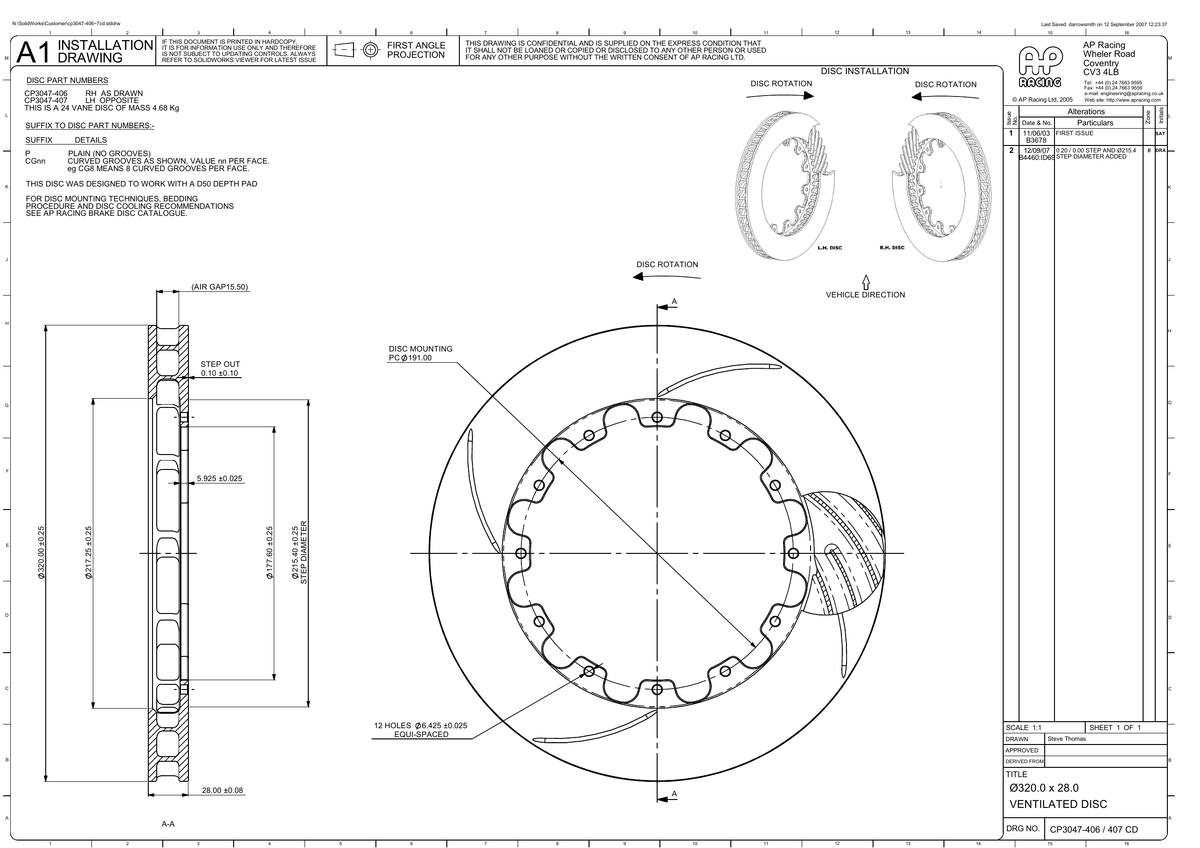

• AP Racing Ventilated Brake Disc 320x28mm (CP3047-406/7) technical drawing
  • SKU: CP3047-406CG4

AP Racing Ventilated Brake Disc 320x28mm (CP3047-406/7)

600 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 320x28mm (CP3047-406/7)

Outside diameter: 320.0 mm
Thickness: 28.0 mm
Mounting PCD: 191.0 mm
Mounting holes: 12
Fixing type: Bolted

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 4 curved grooves (CG4) 50 mm 4.68 kg CP3047-406CG4
Left 4 curved grooves (CG4) 50 mm 4.68 kg CP3047-407CG4

Disc weights are reference values and can vary with the face machining. They exclude packaging.

Groove and drilling styles

CG4: 4 curved, backward-facing grooves per face.

AP Racing part numbers: CP3047-406CG4, CP3047-407CG4.

Check the part number and mounting dimensions against your application. See the AP Racing catalogue for full disc details.

For ordering assistance, email info@radaauto.ee.
