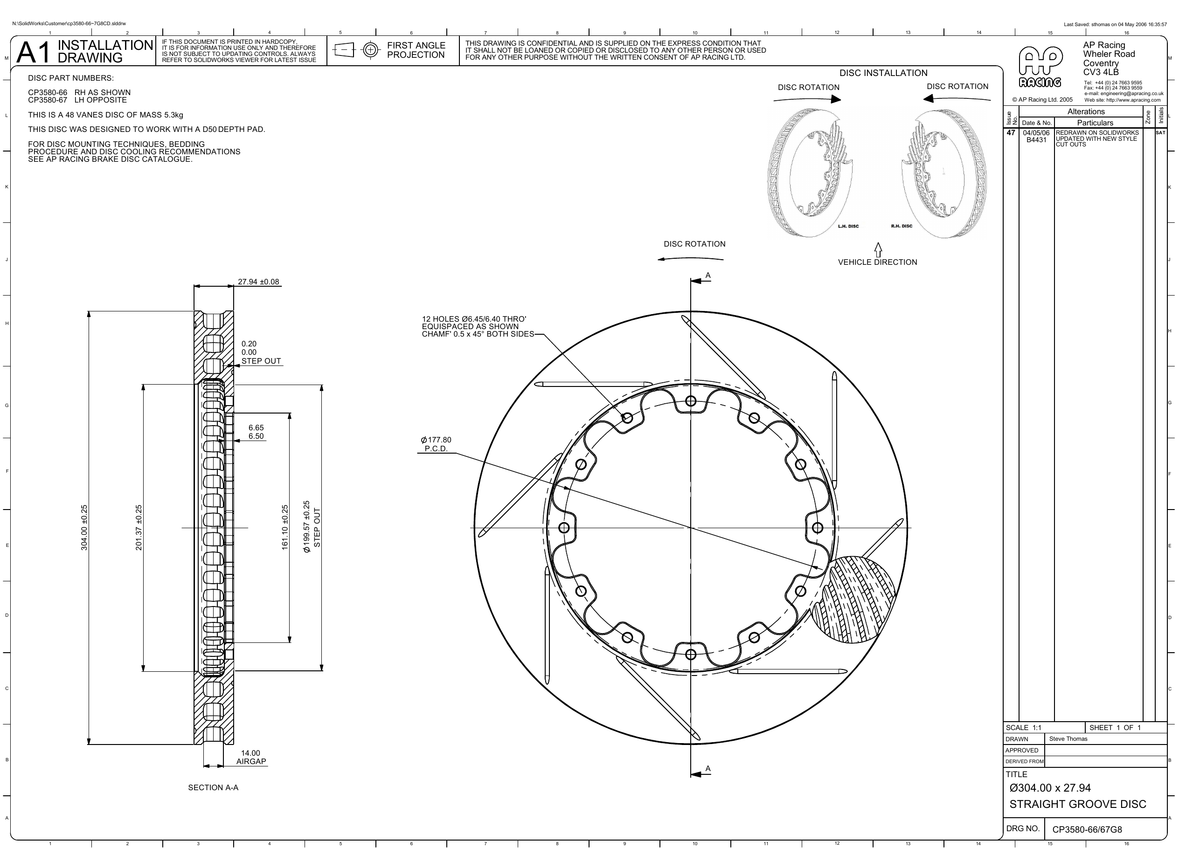

AP Racing Ventilated Brake Disc 304x28mm (CP3580-66/67)

AP Racing Ventilated Brake Disc 304x28mm (CP3580-66/67)

Outside diameter: 304 mm
Thickness: 28 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 201.4 mm
Inside flange diameter: 161 mm
Mounting flange thickness: 6.6 mm
Max pad depth: D48
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 4.9 kg
Face types available: G8

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3580-66G8, CP3580-67G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
