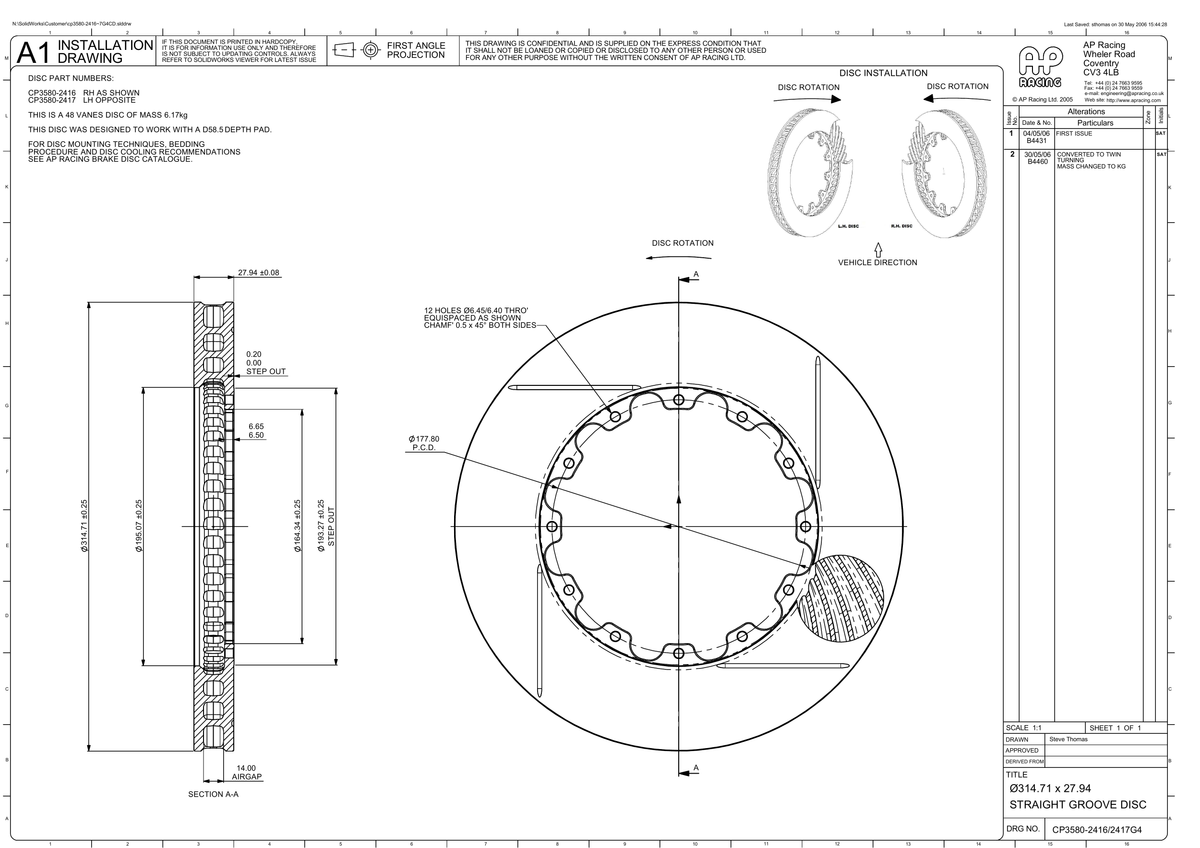

AP Racing Ventilated Brake Disc 315x28mm (CP3580-2416/2417)

AP Racing Ventilated Brake Disc 315x28mm (CP3580-2416/2417)

Outside diameter: 315 mm
Thickness: 28 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 195.1 mm
Inside flange diameter: 164.3 mm
Mounting flange thickness: 5.8 mm
Max pad depth: D60
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.9 kg
Face types available: G4

Select the correct side and face style from the available options.

Face style notes

G4: straight grooves, number is grooves per face.

AP Racing part numbers: CP3580-2416G4, CP3580-2417G4.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
