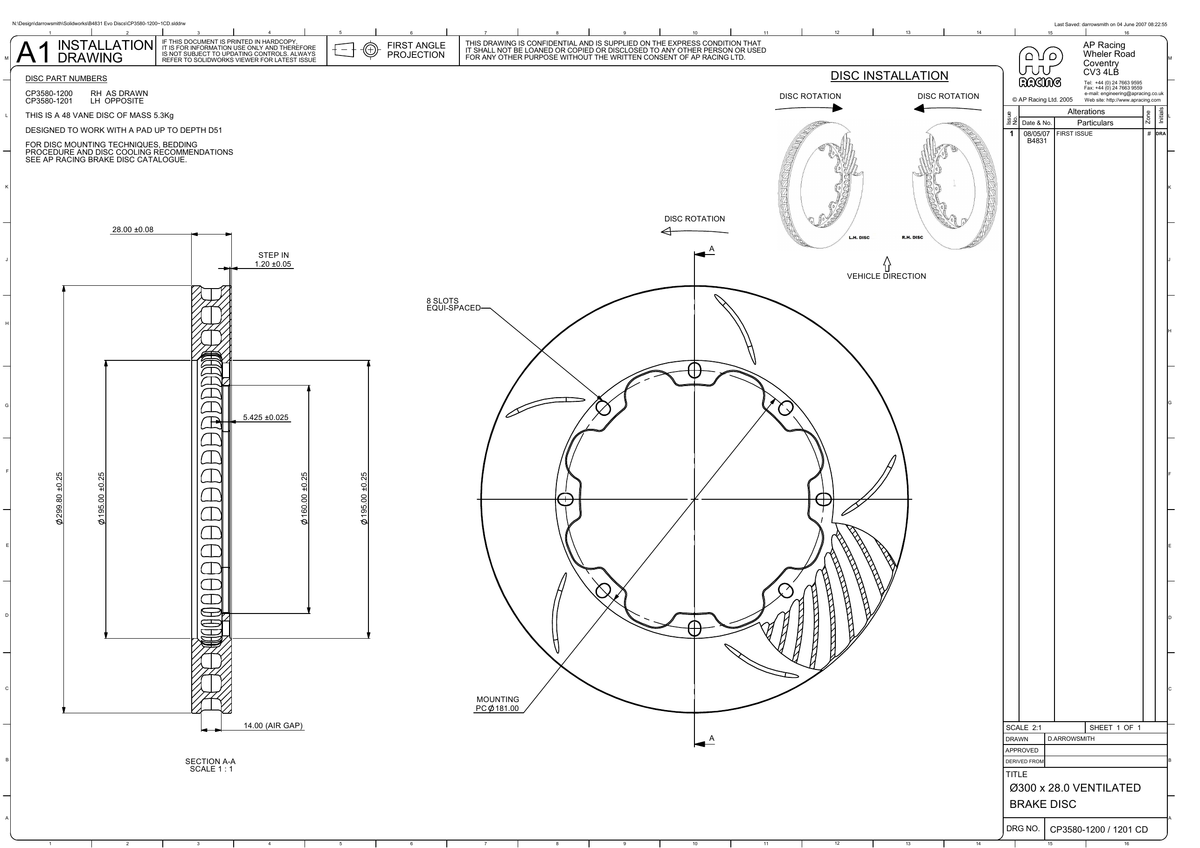

• AP Racing Ventilated Brake Disc 300x28mm (CP3580-1200/1201) technical drawing
  • SKU: CP3580-1200CG5

AP Racing Ventilated Brake Disc 300x28mm (CP3580-1200/1201)

581 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 300x28mm (CP3580-1200/1201)

Outside diameter: 300 mm
Thickness: 28 mm
Mounting PCD: 181 mm
Mounting holes: 8
Fixing type: Floating
Eye diameter: 195 mm
Inside flange diameter: 160 mm
Mounting flange thickness: 5.42 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.3 kg
Face types available: CG5
AP comments: Brembo mounting

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 5 curved grooves (CG5) D51 5.3 kg CP3580-1200CG5
Left 5 curved grooves (CG5) D51 5.3 kg CP3580-1201CG5

Face style notes

CG5: curved grooves, number is grooves per face.

AP Racing part numbers: CP3580-1200CG5, CP3580-1201CG5.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
