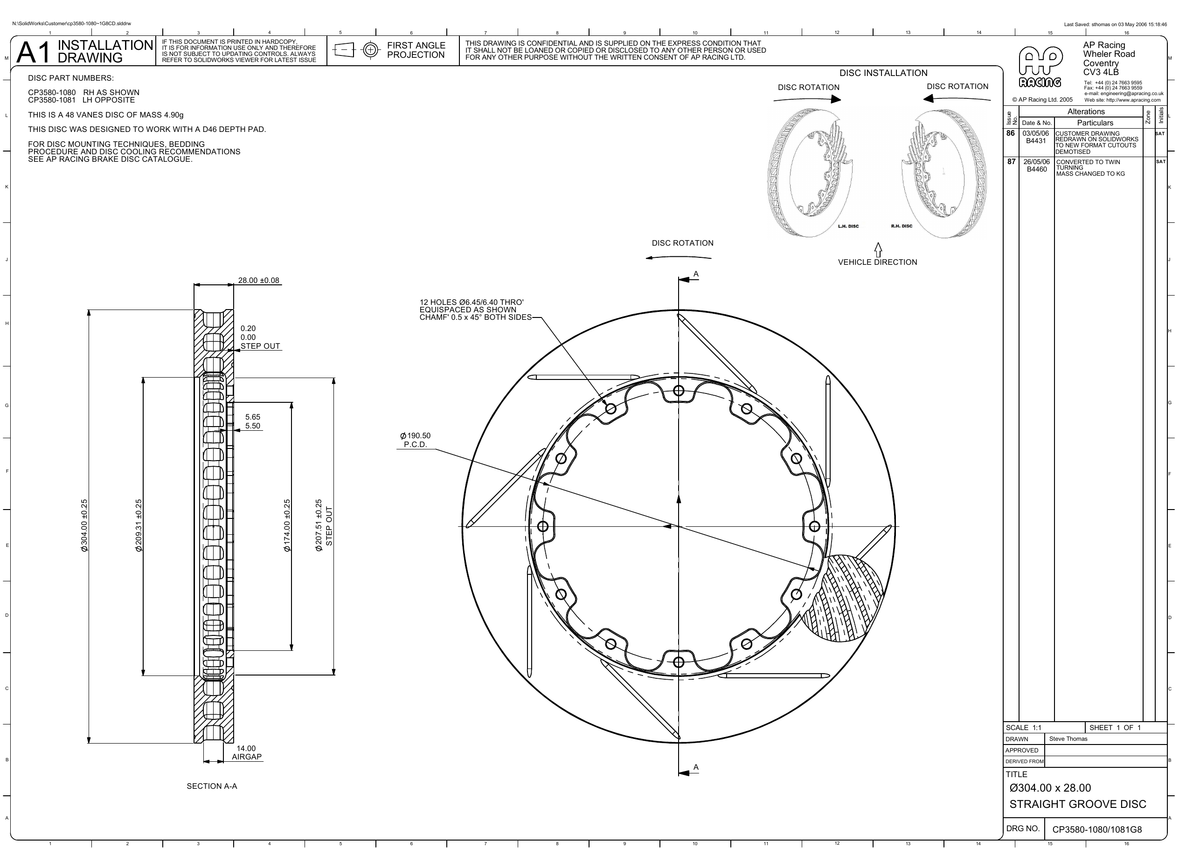

• AP Racing Ventilated Brake Disc 304x28mm (CP3580-1080/1081) technical drawing
  • SKU: CP3580-1080G8

AP Racing Ventilated Brake Disc 304x28mm (CP3580-1080/1081)

529 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 304x28mm (CP3580-1080/1081)

Outside diameter: 304 mm
Thickness: 28 mm
Mounting PCD: 190.5 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 210.6 mm
Inside flange diameter: 174 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D47
Number of vanes: 48
Air gap: 14 mm
Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D47 — kg CP3580-1080G8
Left 8 straight grooves (G8) D47 — kg CP3580-1081G8

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3580-1080G8, CP3580-1081G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
