AP Racing Ventilated Brake Disc 304x28mm (CP3047-270/271)
666 €
/ per
Tax included.
Not in stock, available to order
Product description

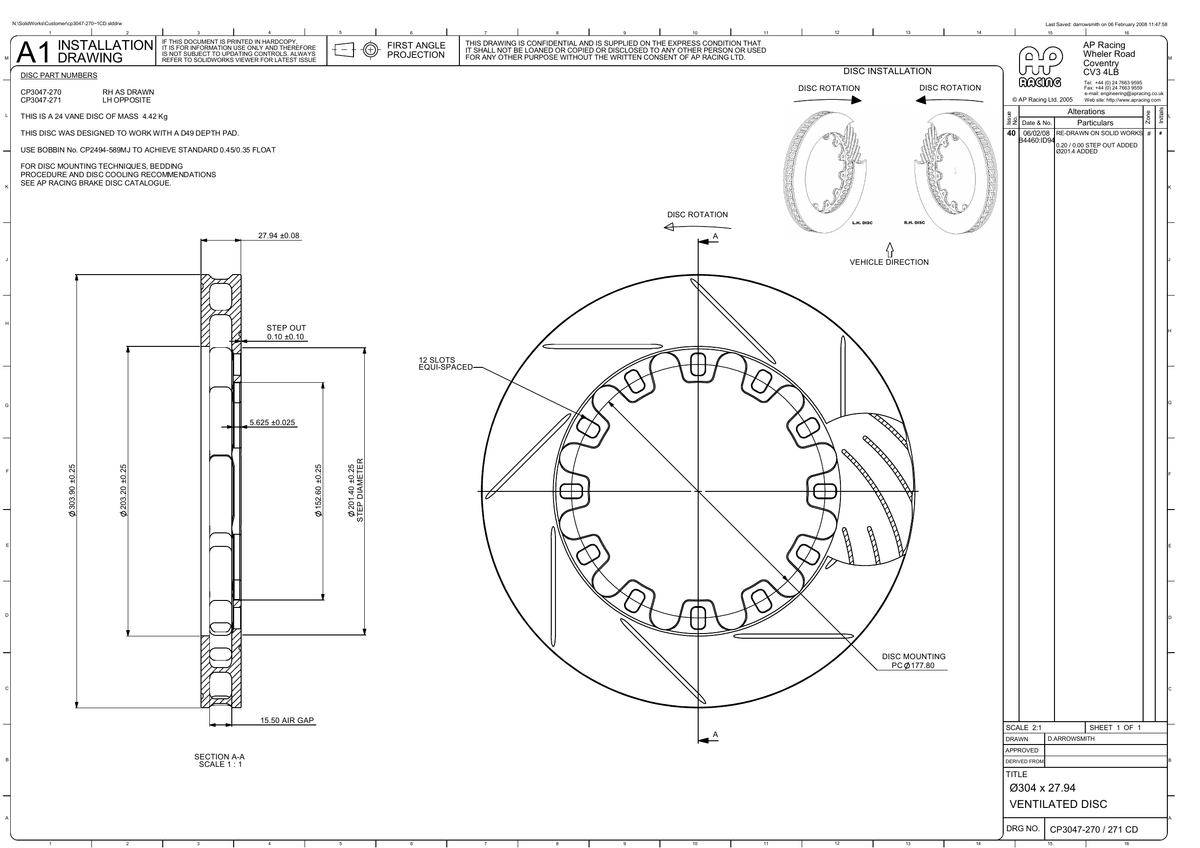

AP Racing Ventilated Brake Disc 304x28mm (CP3047-270/271)
Outside diameter: 304 mm
Thickness: 28 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Floating
Eye diameter: 203.2 mm
Inside flange diameter: 152.6 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D50
Number of vanes: 24
Air gap: 15.5 mm
Approx. disc weight: 4.6 kg
Face types available: G8
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
8 straight grooves (G8)
D50
4.6 kg
CP3047-270G8
Left
8 straight grooves (G8)
D50
4.6 kg
CP3047-271G8
Face style notes
G8: straight grooves, number is grooves per face.
AP Racing part numbers: CP3047-270G8, CP3047-271G8.
