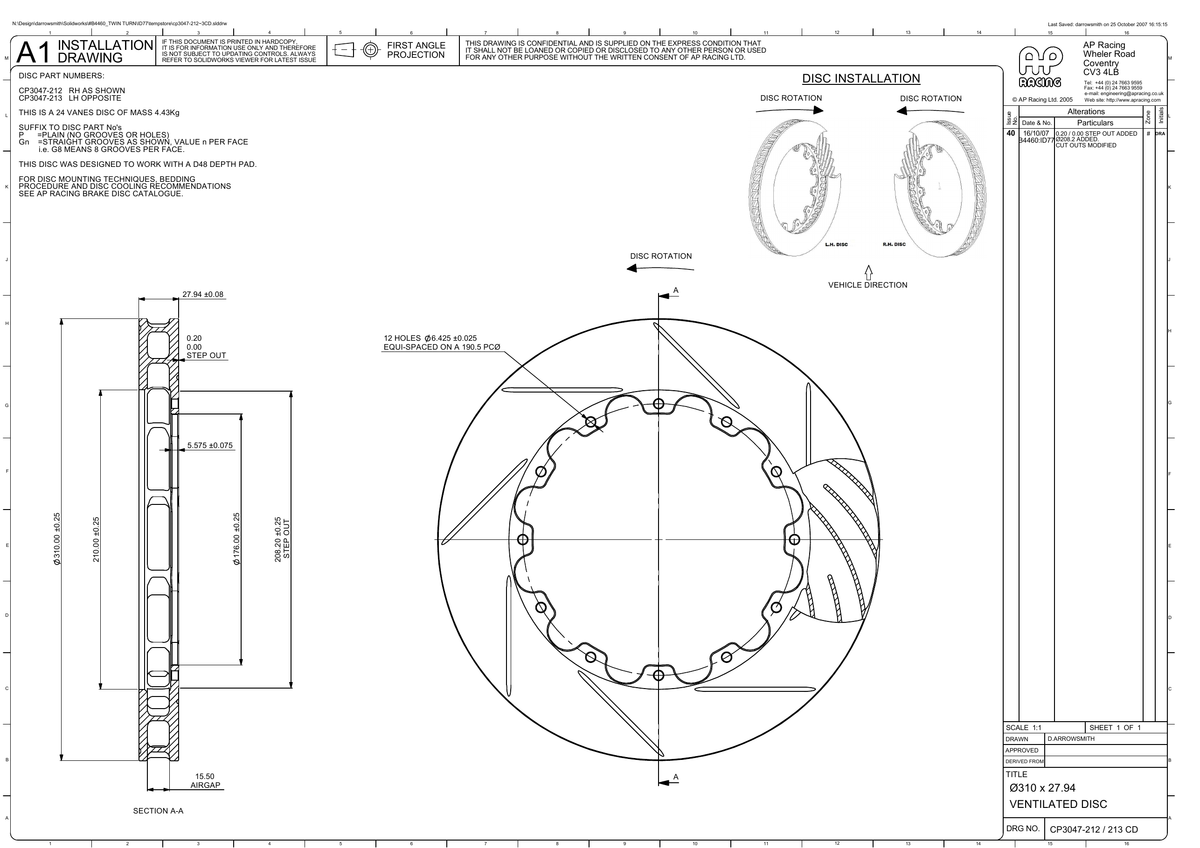

AP Racing Ventilated Brake Disc 310x28mm (CP3047-212/213)
Outside diameter: 310 mm
Thickness: 28 mm
Mounting PCD: 190.5 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 210 mm
Inside flange diameter: 176 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D50
Number of vanes: 24
Air gap: 15.5 mm
Face types available: G8
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 8 straight grooves (G8) | D50 | — kg | CP3047-212G8 |
| Left | 8 straight grooves (G8) | D50 | — kg | CP3047-213G8 |
Face style notes
G8: straight grooves, number is grooves per face.
AP Racing part numbers: CP3047-212G8, CP3047-213G8.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
