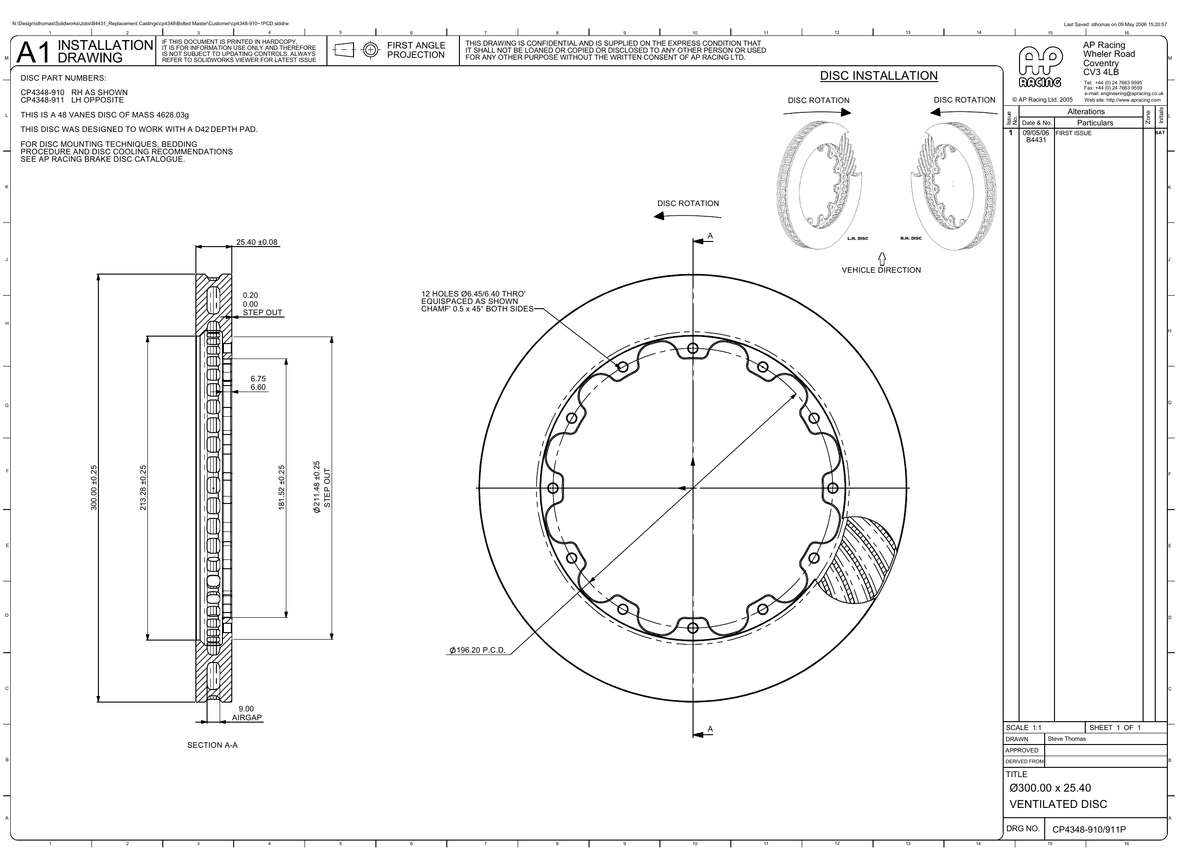

AP Racing Ventilated Brake Disc 300x25.4mm (CP4348-910/911)

AP Racing Ventilated Brake Disc 300x25.4mm (CP4348-910/911)

Outside diameter: 300 mm
Thickness: 25.4 mm
Mounting PCD: 196.2 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 213.3 mm
Inside flange diameter: 181.5 mm
Mounting flange thickness: 6.67 mm
Max pad depth: D42
Number of vanes: 48
Air gap: 9 mm
Approx. disc weight: 4.6 kg
Face types available: P

Select the correct side and face style from the available options.

Face style notes

P: plain, no grooves or holes.

AP Racing part numbers: CP4348-910P, CP4348-911P.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
