AP Racing Ventilated Brake Disc 315x25.4mm (CP3580-1012/1013)
516 €
/ per
Tax included.
Not in stock, available to order
Product description

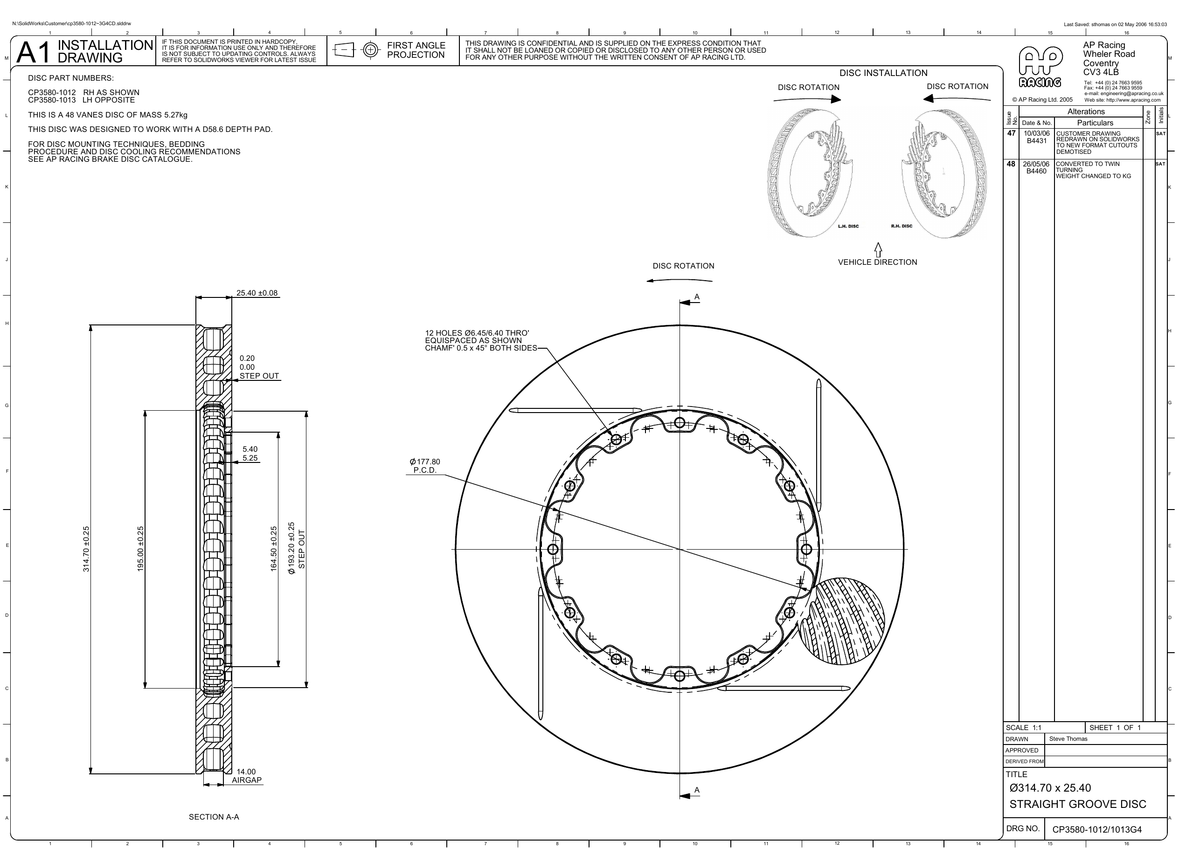

AP Racing Ventilated Brake Disc 315x25.4mm (CP3580-1012/1013)
Outside diameter: 315 mm
Thickness: 25.4 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 195 mm
Inside flange diameter: 164.5 mm
Mounting flange thickness: 5.3 mm
Max pad depth: D59
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5.3 kg
Face types available: G4
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
4 straight grooves (G4)
D59
5.3 kg
CP3580-1012G4
Left
4 straight grooves (G4)
D59
5.3 kg
CP3580-1013G4
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP3580-1012G4, CP3580-1013G4.
