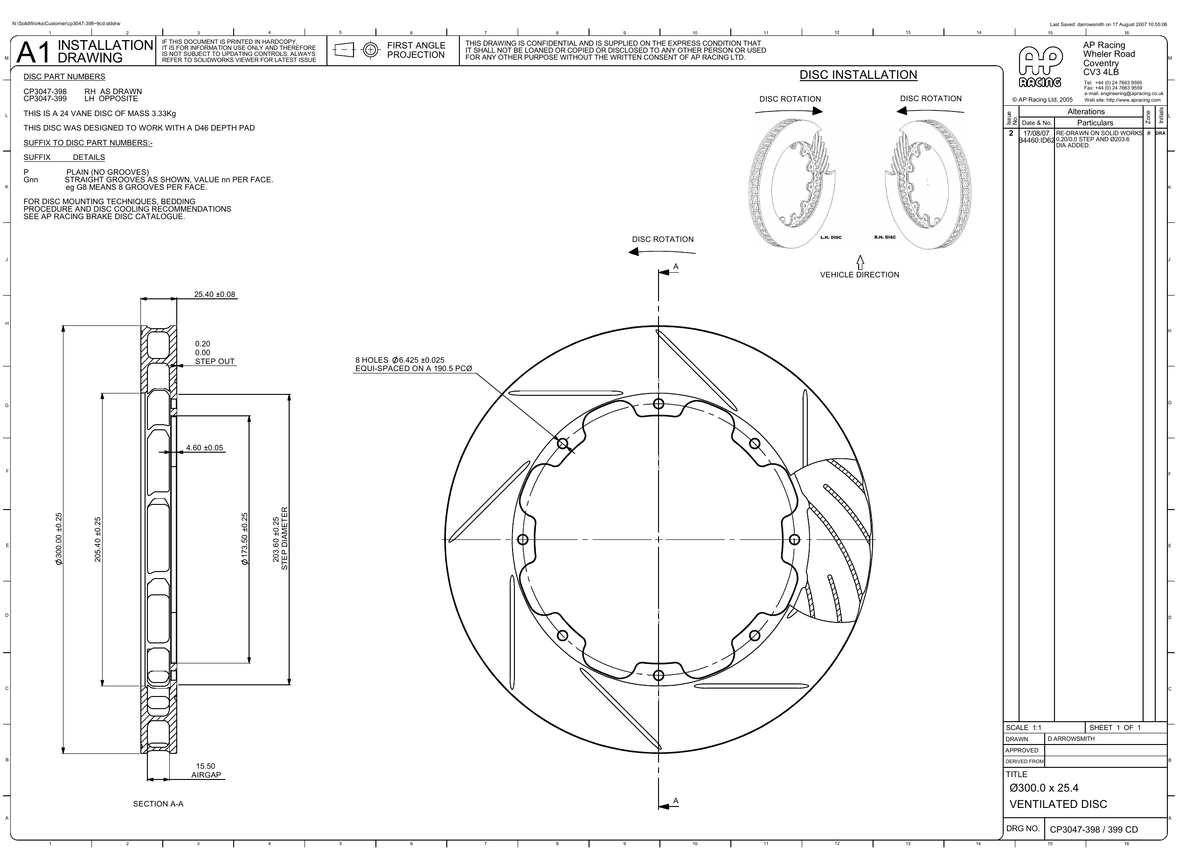

AP Racing Ventilated Brake Disc 300x25.4mm (CP3047-398/399)
614 €
/ per
Tax included.
Not in stock, available to order
Product description
AP Racing Ventilated Brake Disc 300x25.4mm (CP3047-398/399)
Outside diameter: 300 mm
Thickness: 25.4 mm
Mounting PCD: 190 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 205.4 mm
Inside flange diameter: 173.5 mm
Mounting flange thickness: 4.6 mm
Max pad depth: D46
Number of vanes: 24
Air gap: 15.5 mm
Approx. disc weight: 3.3 kg
Face types available: G8
Select the correct side and face style from the available options.
Side
Face style
Pad depth
Approx. disc weight
SKU
Right
8 straight grooves (G8)
D46
3.3 kg
CP3047-398G8
Left
8 straight grooves (G8)
D46
3.3 kg
CP3047-399G8
Face style notes
G8: straight grooves, number is grooves per face.
AP Racing part numbers: CP3047-398G8, CP3047-399G8.
