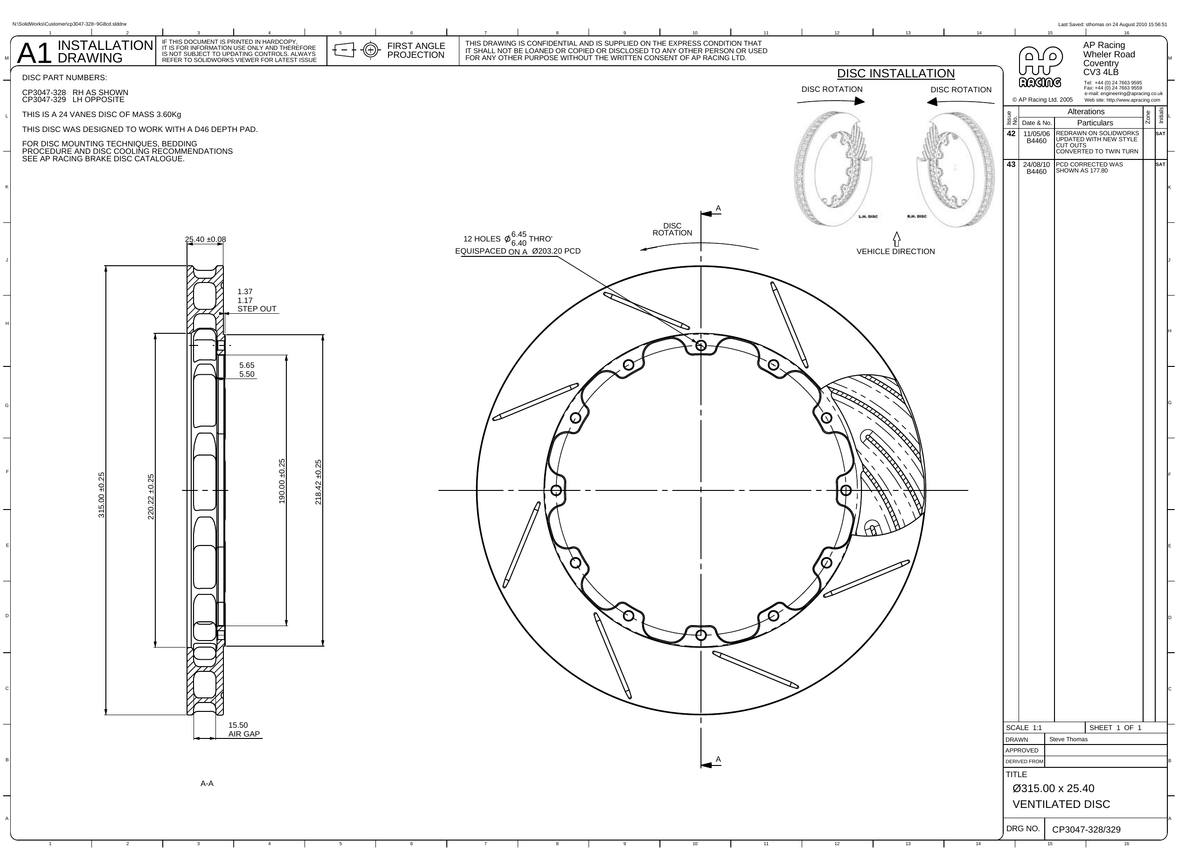

AP Racing Ventilated Brake Disc 315x25.4mm (CP3047-328/329)

AP Racing Ventilated Brake Disc 315x25.4mm (CP3047-328/329)

Outside diameter: 315 mm
Thickness: 25.4 mm
Mounting PCD: 203.2 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 220 mm
Inside flange diameter: 190 mm
Mounting flange thickness: 5.8 mm
Max pad depth: D46
Number of vanes: 24
Air gap: 15.5 mm
Approx. disc weight: 3.8 kg
Face types available: G8

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3047-328G8, CP3047-329G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
